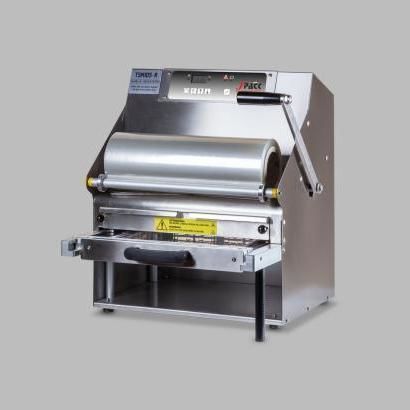

Linear tray sealer TSM105-R

manualcompactfor the food industry

Description
Compact footprint and quick mould change make the TSM105-R suitable for small deli shops and supermarkets. Can be equipped with the J Pack‑patented INFINITY modular mould or with customized moulds. Expanded sealing surface accepts trays up to GN 1/2. The Click-n-Pack system simplifies the sealing operation.

Technical data
Machine sizes and weight: mm 485 x 510 x h 555 / 36 kg
Tray max sizes: mm 370 x 280 x h 155
Reel max width and diam.: L = 380 mm - Ø 200 mm
Feeding: Electric
Tray loading and movement: Manual
Mould: INFINITY – fixed, no die-cut
Mould change: quick change system
Customizable mould: available
Film automatic unwinding: included
Cycle-end acoustic device: included
Cycles/minute: 3–8
Partial and total cycle counter: —
Customized digital sealing programmes: 5
Voltage - Absorption: 220 V - 1400 W

Characteristics / technical specifications

• Compact size and quick mould change
• Compatible with J Pack‑patented INFINITY modular mould and with customized moulds
• Expanded sealing surface for trays up to GN 1/2
• Click-n-Pack system for simplified sealing
• Machine dimensions: 485 x 510 x h 555 mm; Weight: 36 kg
• Maximum tray size: 370 x 280 x h 155 mm
• Reel maximum: width 380 mm; diameter 200 mm
• Feeding: Electric
• Tray loading and movement: Manual
• Mould: INFINITY – fixed, non die-cut; customizable moulds available
• Film automatic unwinding: included
• Cycle-end acoustic device: included
• Production speed: 3–8 cycles/minute
• Customized digital sealing programmes: 5
• Voltage / Power absorption: 220 V - 1400 W
