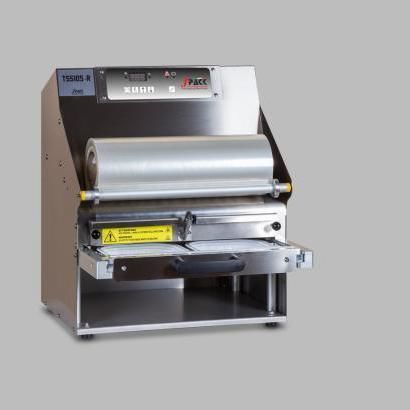

Linear tray sealer TSS105-R

semi-automaticwith modified atmosphere packagingcompact

Product overview
Compact semi-automatic electrical thermosealer designed for small delis and supermarkets. Quick mould change and compatibility with the J Pack-patented INFINITY modular mould or customized moulds. Expanded sealing surface accommodates trays up to GN 1/2. Available with gas-flush option.

Key features

• Compact size and quick mould change
• Compatible with J Pack-patented INFINITY modular mould or customized moulds
• Expanded sealing surface (up to GN 1/2)
• Gas-flush option available
• Electric feeding
• Manual + electric tray loading and movement
• Optional automatic film unwinding
• Optional cycle-end acoustic device
• Partial and total cycle counters
• 9 customizable digital sealing programmes

Technical table
Machine size and weight: 460 x 510 x h 555 mm — 35 kg
Tray max size: 370 x 280 x h 155 mm
Reel max width and diam.: L = 380 mm — Ø 200 mm
Feeding: Electric
Tray loading and movement: Manual + Electric
Mould: INFINITY (fixed, no die-cut); customizable moulds available
Mould change: quick
Film automatic unwinding: available (optional)
Cycle-end acoustic device: available (optional)
Cycles/minute: 3–8
Partial and total cycle counter: yes
Customized digital sealing programmes: 9
Voltage / Power absorption: 220 V — 1500 W

Characteristics / technical specifications

• Model: TSS105-R
• Overall dimensions: 460 x 510 x h 555 mm
• Weight: 35 kg
• Maximum tray size: 370 x 280 x h 155 mm
• Maximum reel: width 380 mm — diameter 200 mm
• Feeding: Electric (220 V — 1500 W)
• Tray loading and movement: Manual + Electric
• Mould type: INFINITY modular or fixed non-die-cut; customizable moulds available
• Quick mould change
• Optional automatic film unwinding and cycle-end acoustic device
• Cycle speed: 3–8 cycles/minute
• Cycle counters: partial and total
• Digital sealing programmes: 9 customizable
• Suitable for sealing large trays up to GN 1/2
