Semi-automatic tray sealing machine TSS105-F

with modified atmosphere packagingcompactfor the food industry

Product overview

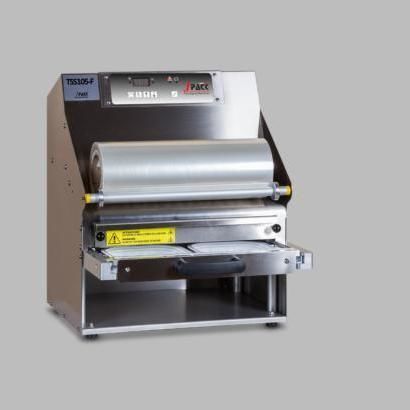

The J Pack machine TSS105-F is an electrical tabletop tray sealer with profile cutting. It is a compact and versatile packaging solution for supermarkets. The machine is equipped with an integrated, customizable die-cut mould. The wide sealing plate doubles productivity. Gas flushing option is available for increasing the shelf-life of the product.

Key features

• Integrated, customizable die-cut mould
• Wide sealing plate to double productivity
• Gas flushing option (to increase shelf-life)
• Electric feeding
• Tray loading and movement: Manual-Electric
• Film automatic unwinding
• Cycle-end acoustic device
• Partial and total cycle counter
• Customized digital sealing programmes: 9
• Cycle speed: 3-8 cycles/minute

Technical table
Machine sizes and weight: mm 460 x 510 h 555 / 40 kg
Tray max sizes: mm 350 x 260 h 135
Reel max width and diam.: L = 380 - Ø 200 mm
Feeding: Electric
Tray loading and movement: Manual-Electric
Mould: Fixed with die-cut
Mould change: Not specified
Customizable mould: Yes
Film automatic unwinding: Yes
Cycle-end acoustic device: Yes
Cycles/minute: 3-8
Partial and total cycle counter: Yes
Customized digital sealing programme: 9 programmes
Voltage - Absorbtion: 220 V - 750 W

Technical specifications

• Model: TSS105-F
• Type: Electrical tabletop tray sealer with profile cutting (semi-automatic)
• Intended use: Compact packaging solution for supermarkets
• Integrated die-cut mould: customizable
• Machine dimensions and weight: mm 460 x 510 h 555 / 40 kg
• Maximum tray size: mm 350 x 260 h 135
• Reel max width and diameter: L = 380 mm, Ø = 200 mm
• Feeding: Electric
• Tray loading & movement: Manual-Electric
• Mould: Fixed with die-cut (customizable)
• Automatic film unwinding: Yes
• Cycle-end acoustic device: Yes
• Cycles per minute: 3-8
• Partial and total cycle counter: Yes
• Customized digital sealing programmes: 9
• Voltage / Power absorption: 220 V - 750 W
