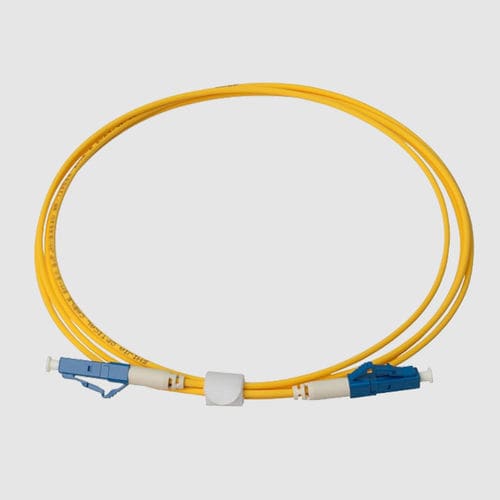

OM1 patch cable

simplexmulti-modeOM2

Product description
Fiber optic patchcords with LC connectors on both ends, available for single-mode and multi-mode fibers, designed for interconnect and cross-connect applications in telecommunications, data centers, FTTx, LAN and WAN environments. Multiple cable diameters, connector types and end-face polishes are offered to suit installation and performance requirements.

Key features

• End-face polish: UPC or APC (depending on variant)
• Low insertion loss ≤0.30 dB and high return loss
• Available for single-mode (SM) and multi-mode (MM), simplex and duplex
• Cable diameters: 0.9 mm, 1.6 mm, 2.0 mm, 3.0 mm
• Compatible connectors: LC, FC, SC, ST, E2000, MU, MTRJ, SN, CS
• Compliant with IEC, Telcordia GR-326-CORE and RoHS

Applications

• Data centers and LAN interconnects
• Telecommunication long-haul links and FTTx
• CATV and broadcast systems
• Laboratory and testing environments
• Patch panels and equipment interconnections

Technical specifications

• Insertion loss: ≤0.30 dB
• Return loss: SM APC ≥60 dB; SM UPC ≥50 dB; MM (PC) ≥35 dB
• Exchangeability: ≤0.20 dB
• Repeatability: ≤0.20 dB
• Fiber types: SM (G.652D/G.657A1/G.657A2/G.657B3), MM (OM1/OM2/OM3/OM4/OM5)
• Operating wavelengths: SM 1310 / 1550 nm; MM 850 / 1300 nm
• Operating temperature: -25 to +70 °C
• Cable materials: PVC, LSZH, OFNP, OFNR
