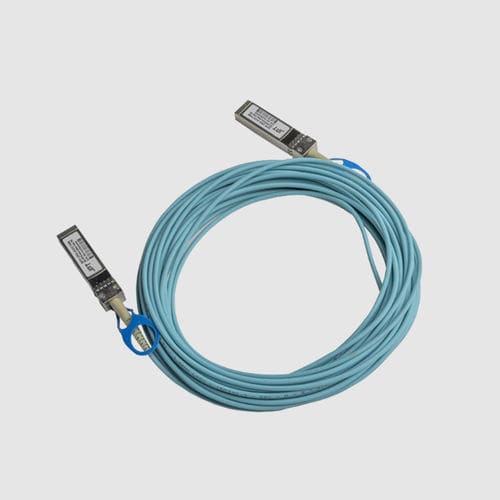

Optical data cable SFP28-25G-AOClow-smokeroundPVC-insulated
Add to favorites
Compare this product
Characteristics
- Type
- data
- Protection
- low-smoke
- Configuration
- round
- Material of the insulation
- PVC-insulated
- Other characteristics
- multimode, high-speed
- Temperature
Max.: 70 °C
(158 °F)Min.: 0 °C
(32 °F)
Description
Product Description
Active optical cable (AOC) uses electrical-to-optical conversion at the cable ends to extend reach and improve signal performance while remaining compatible with standard electrical interfaces. Designed for high-density interconnects in data centers and high-performance computing environments, this SFP28 AOC supports 25Gbps links with low power consumption and compact, hot-pluggable SFP28 form factors.
Key Features
Product Models
Technical Specifications
Active optical cable (AOC) uses electrical-to-optical conversion at the cable ends to extend reach and improve signal performance while remaining compatible with standard electrical interfaces. Designed for high-density interconnects in data centers and high-performance computing environments, this SFP28 AOC supports 25Gbps links with low power consumption and compact, hot-pluggable SFP28 form factors.
Key Features
- Max. power consumption <1W (specified as Max. Power Consumption 1W)
- Tested in targeted switches for superior interoperability and reliability
- Compliant with the SFP28 MSA and IEEE 802.3by 25GBASE-SR Ethernet standard
- Hot-pluggable SFP28 modules
- All-metal housing for improved EMI performance
- RoHS compliant
Product Models
- SFP28-25G-AOC
Technical Specifications
- Connector Type: SFP28 to SFP28
- Cable Type: OM3, OM4 (optional)
- Jacket Material: PVC, LSZH
- Working Temperature: 0°C ~ 70°C
- Brand: JPT
- Max Data Rate: 25Gbps
- Transmission Distance: 1 ~ 100 m (optional)
- Power Consumption: <1W
- Warranty: 3 Years
