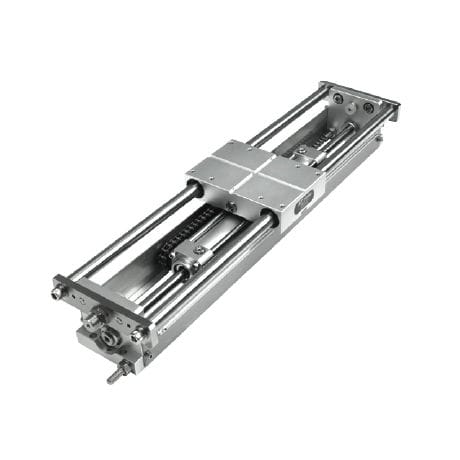

Standard cylinder RHWslidewidedouble
Add to favorites
Compare this product
Characteristics
- Other characteristics
- standard, slide, wide, double
- Stroke
Max.: 1,500 mm
(59.055 in)Min.: 50 mm
(1.969 in)- Force
Max.: 210,920 N
Min.: 11.58 N
- Speed
Max.: 1,000 mm/s
Min.: 150 mm/s
- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -5 °C
(23 °F)
Description
Double speed slide cylinder on a twice enlarged stroke distance by using chain. possible to make high speed than usual cylinder speed.
As compared with standard, distance among guides is wide, moment's feature is excellent and suitable for side load.
This type is wide width, and there are standard(RH), protection cover(RHC) and slim(RHS), etc.
As a cylinder for elimination of labor, being possible to be long stroke and to adjust the stroke.
