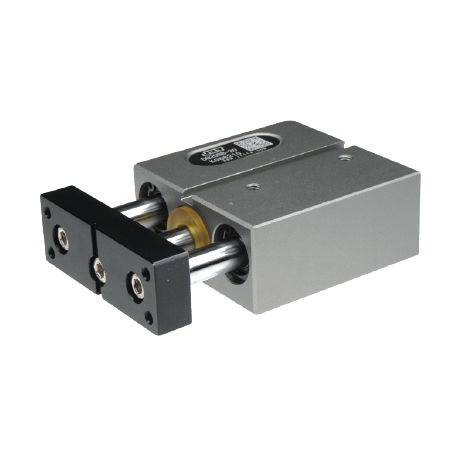

Guide cylinder DGprecisionslidedouble
Add to favorites
Compare this product
Characteristics
- Applications
- guide
- Other characteristics
- precision, slide, double
- Stroke
Max.: 175 mm
(6.89 in)Min.: 15 mm
(0.591 in)- Bore
16 mm, 20 mm, 25 mm, 30 mm
(0.63 in, 0.79 in, 0.98 in, 1.18 in)- Pressure
Max.: 7 bar
(101.53 psi)Min.: 3 bar
(43.51 psi)- Force
14.72 N, 23.05 N, 37.28 N, 50.03 N
- Speed
30 mm/s, 200 mm/s
- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -5 °C
(23 °F)
Description
Single cylinder and Double guide are arranged in parallel and connect rod thread to mounting plate both rod type unit
PLATE moving type slide cylinder
Magnetic sensor is available for open-close sensing
Possible to choose high precision B-type (BALL BUSH) and economical N-type (DU DRY BUSH
Catalogs
No catalogs are available for this product.
See all of JRT‘s catalogsOther JRT products
Slide Cylinder
