Vane air motor 6AM series
for the food industrylubricatednon-lubricated

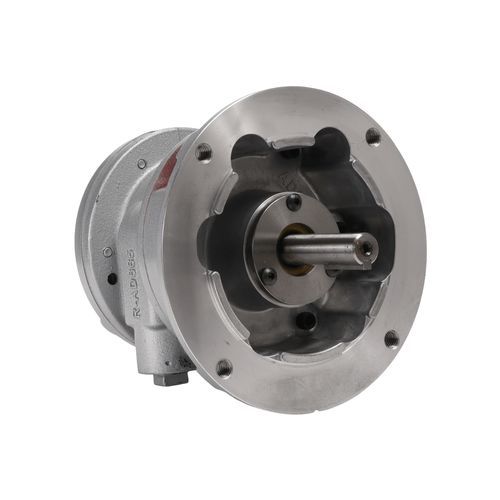

Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 2
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 3
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 4
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 5
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 6
Vane air motor - 6AM series - JUN-AIR - for the food industry / lubricated / non-lubricated - image - 7
Add to favorites
Compare this product

Characteristics

Technology.
vane
Applications
for the food industry
Other characteristics
lubricated, reversible, non-lubricated
Torque

Max.: 13 Nm
(9.59 ft.lb)

Min.: 6.9 Nm
(5.09 ft.lb)

Rotational speed

3,000 rpm
(18,849.56 rad.min-1)

Power

2,982.8 W
(4.06 hp)

Description

Overview
The 6AM-NRV-11A is a large air motor designed for operation in hazardous and extreme-temperature environments where a durable, efficient pneumatic power source is required. It converts compressed air into mechanical energy with precise control and cool-running performance. The 4 HP 6AM-NRV-11A delivers a maximum torque of 115 in-lbs and a maximum speed of 3000 rpm, with a maximum operating pressure of 100 PSI.

Design and performance
Designed for versatility and reliability, the 6AM family offers variable speed capability, low-shock instant start/stop/reverse, and the choice of oil-free or lubricated operation. Its non-electrical construction reduces the risk of ignition in explosive atmospheres, and self-sealing vanes ensure extended service life.

Typical applications
Suitable for powering surgical instruments in healthcare, driving mixers in food and beverage processing, supporting automation in general industry, and operating assembly equipment in automotive manufacturing.

Highlights
  • Mounting options: can operate in any position for flexible integration
  • Customization: OEM options for materials, shaft configurations, paint, mounting and gearing
  • Low-shock instant operation: RV models enable immediate start, stop and reverse to reduce equipment stress

Product Details
Item #: 6AM-NRV-11A
Series: Air Motors
Description: Air Motors (Large)

Specifications
  • Model / SKU: 6AM-NRV-11A
  • Series: Air Motors
  • HP: 4
  • Max Torque: 115 in-lbs
  • Max Speed: 3000 rpm
  • Maximum Pressure: 100 PSI
  • Weight: 21 lb (10 kg)
  • Sound Level: 90 dBA
  • Dimensions (in): 8.29 L x 6.5 W x 6.5 H
  • Dimensions (mm): 210.6 L x 165.1 W x 165.1 H
  • Mounting Dimensions (in): 5.88 D
  • Mounting Dimensions (mm): 149.4 D
  • Regulatory: CE
  • Phase: None
  • Country of Origin (COO): US
  • Operating options: oil-free or lubricated
  • Design features: cool running capability, variable speeds, low-shock instant start/stop/reverse, non-electrical design to reduce explosion risk, self-sealing vanes for longevity
  • Applications: healthcare (surgical tools), food & beverage mixers, industrial automation, automotive assembly
