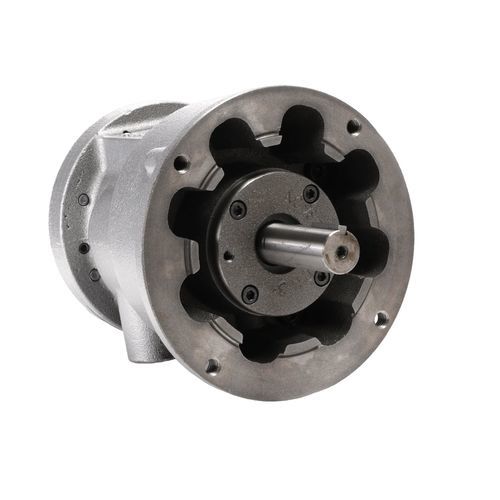

Vane air motor 8AM series

for agitatorsfor the food industrylubricated

Product Overview
The 8AM-ARV-70 is an air motor designed to convert compressed air into mechanical power for industrial applications in hazardous or extreme temperature environments. Rated at 5 HP, it delivers a maximum torque of 185 in-lbs and a maximum speed of 2,500 rpm with a maximum working pressure of 100 PSI. Available in oil-free or lubricated configurations.

Detailed Description
Part of the 8AM series, the 8AM-ARV-70 provides controlled, cool-running operation suitable for environments where electrical motors are unsuitable. Its non-electrical design reduces explosion risk. The model supports variable speed control and features self-sealing vanes to ensure long service life. RV variants enable low-shock instant start, stop and reverse functionality.

Common Applications

• Powering surgical tools in healthcare
• Driving mixers in food and beverage processing
• Enhancing automation in general industrial applications
• Automating assembly lines in automotive manufacturing

Highlights

• Mounting options: Operates in any position for flexible integration.
• Customization: OEMs can request custom materials, shafts, paint, mounting configurations, and gearing.
• Low-shock, instant operation: RV models provide immediate start, stop and reverse to reduce mechanical stress and eliminate delays associated with electric motor speed changes.

Item / Series / Description
Item #: 8AM-ARV-70
Series: Air Motors
Description: Air Motors (Large)

Specifications / Technical data

• Model / Series: 8AM (8AM-ARV-70 SKU)
• Horsepower (HP): 5
• Max Torque: 185 in-lbs
• Max Speed: 2,500 rpm
• Maximum Pressure: 100 PSI
• Weight: 32 lb (15 kg)
• Sound Level: 105 dBA
• Dimensions (Standard): 9.3 L x 7.88 W x 7.88 H in (236.2 x 200.2 x 200.2 mm)
• Mounting Dimensions: 6.5 in diameter (165.1 mm)
• Regulatory: CE
• Phase: None (air motor, non-electrical)
• Country of Origin: USA
• Design / Features: Oil-free or lubricated options; non-electrical design reduces explosion risk; self-sealing vanes for long life; cool-running capability; variable speed control; low-shock instant start/stop/reverse.
• Mounting: Can operate in any position
• Customization: Materials, shafts, paint, mounting configurations and gearing available for OEM customization
