Anti-vibration mat 464-BL series

fire-retardantprotectionanti-static

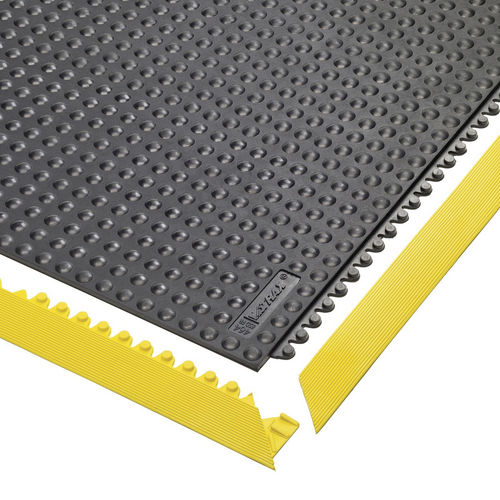

The Skywalker HD™ ESD Nitrile FR 464 Notrax electro static discharge mat is a heavy duty modular rubber tile designed for industrial environments. These tiles can be easily assembled to cover large areas or individual workstations, providing ergonomic and safety benefits.

Product Features

• The unique design and craftsmanship make the mat easy to handle and install on site.
• A tooled grid of 30 cm x 30 cm sections on the underside allows for quick and easy customization.
• Attachable bevelled edges prevent tripping and allow for both inside and outside corners.
• Resistant to most industrial oils and suitable for welding areas.

Product Description

• Heavy duty rubber tiles of 91 cm x 91 cm can be easily assembled for coverage of large areas or individual work stations.
• Ergonomic benefit derived from a 13 mm thick worker platform with a bubble pattern for maximum fatigue relief in dry industrial environments.
• Slip resistance rating R9 according to DIN 51130.
• Static dissipative natural rubber compound meets IEC61340-4-1 (category DIF), measured resistance Rg 10⁶ - 10⁹ Ω.
• Fire classification Bfl-S1 tested according to EN 13501-1.

Selling Points

• Thickness: 13 mm
• Heavy duty
• R9 ergonomic bubble pattern
• ESD, Bfl-S1 fire rating and oil resistant
• 91 cm x 91 cm tiles and per m²

Icons / Properties

• Modular
• Insulation
• Anti-Slip
• Anti-Fatigue
• Oil Resistant
• Protection
• Welding
• Fire Retardant
• ESD - Anti-static
• Wheel and Cart Friendly
• PAH 3
• Heavy Traffic
• Heavy Use

Technical Specifications

• High Hazard Seismic Zone: No
• Application: Industrial Environments
• Breaking Load: 4.80 Mpa
• Constant Water Supply: No
• Drive In: No
• Edges: Attachable bevelled edges are available
• Material: Static dissipative and fire retardant nitrile rubber compound
• Material Group: Nitrile rubber
• Process: Compression Moulding
• CGA Fittings: No

Instructions

• Cleaning and Maintenance: Use ESD mat cleaner

Test Results

• Fire rating EU: EN 13501-1 Bfl-S1
