Clean mat 827-BU series

ESDworksmooth

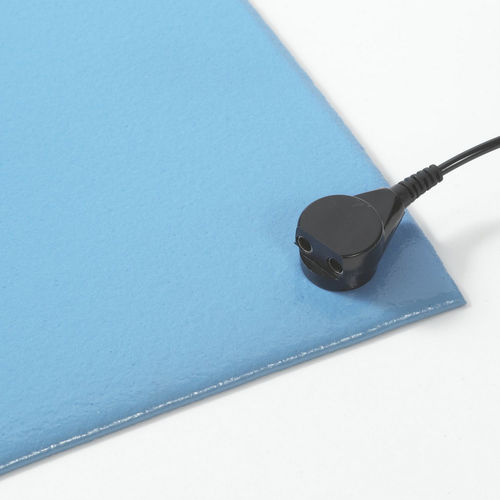

The Anti-Stat POP™ 827 Notrax electro static discharge mat is a static dissipative vinyl work surface designed to safely discharge static load from conductive items placed on it. This mat is ideal for use in ESD working zones to protect electrostatic sensitive components, employees, and sensitive electrical equipment. It features a smooth, abrasion-resistant top surface that is easy to wipe clean with the recommended ESD mat cleaner. The mat is made from microcellular vinyl foam treated with dissipative static properties and meets several international standards for electrostatic discharge and resistance.

Product Features

• Microcellular vinyl foam treated with dissipative static properties
• Meets EOS/ESD-S4, measured resistance Rg 10⁷ Ω and Rp 10⁸ Ω
• Electrostatic charge (walking test), meets ISO6356 and EN1815

Product Description

• Specialized line of ESD accessories to ensure a static free workplace and protect employees and sensitive electrical equipment
• Accessories can connect table work surface, employees, and conductive material to a common grounding point, creating a balance to ensure static electricity flows to ground in a controlled manner
• Protects table and keeps sensitive components safe from damaging static shocks
• Optional grounding cord available
• Custom cut mats may vary in size by approximately plus or minus 2 centimeters

Selling Points

• Thickness: 6.4 mm
• Smooth working surface
• IEC61340-4-1 (category DIF) resistance Rg 10⁶ - 10⁹ Ω
• Available per linear meter in 60 cm, 76 cm, and 91 cm widths

Icons

• Custom Length
• Protection
• ESD - Anti-static

Colour

• Blue

Accessories (sold separately)

• ESD Wrist Band 056 Notrax ESD accessories
• ESD Common Grounding Cord 052 Notrax ESD accessories
• ESD Heel Grounder 055 Notrax ESD accessories
• ESD Floor Grounding Cord 051 Notrax accessories
• ESD Earth Bonding Plug 054 Notrax ESD accessories
• ESD Coil Cord 053 Notrax ESD accessories
• ESD Mat Cleaner 057 Notrax ESD accessories
• ESD Floor Grounding Cord 51 Notrax accessories

Technical specifications

• High Hazard Seismic Zone: No
• Application: Industrial Environments
• Constant Water Supply: No
• Drive In: No
• Edges: Bevelled edges on all sides
• Material: Microcellular vinyl
• Material Group: Vinyl
• Process: Foaming
• CGA Fittings: No

Instructions

• Cleaning and Maintenance: Use ESD mat cleaner

Test results

• Fire rating EU: En 13501-1 Cfl-S1
