Anti-static mat 825-BY series

protectionanti-fatigueanti-slip

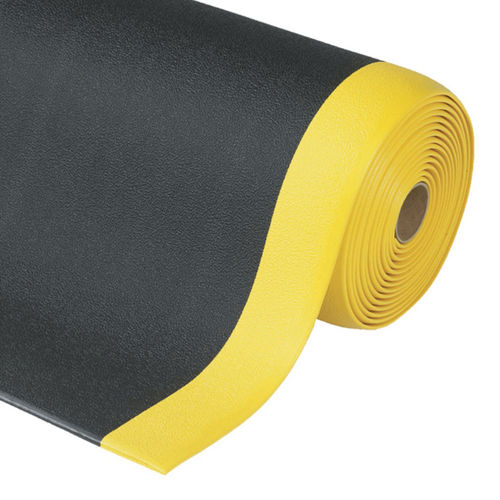

The Cushion Stat™ 825 Notrax electro static discharge mat in Black/Yellow is a 9.4 mm thick worker platform made from static dissipative vinyl sponge, designed to reduce fatigue and static build-up in industrial environments. This mat is ideal for placement in ESD assembly lines, picking, packing and logistics warehouses, and individual workstations where static sensitive components are handled.

Product Features

• Pebble pattern provides non-directional traction and is easy to clean
• Optional 10 mm female socket attached to the mat for connection with optional grounding cord
• Bevelled edges on all four sides to minimize risk of tripping

Product Description

• Ergonomic benefit derived from 9.4 mm thick worker platform of a static dissipative vinyl sponge that reduces fatigue and static build-up
• Pebble pattern provides non-directional traction and is easy to clean
• Optional 10 mm female socket attached to the mat for connection with optional grounding cord
• Static dissipative anti-fatigue mats protect against static shocks while providing comfort for standing workers derived from a thick worker platform with vinyl sponge base for fatigue relief
• Bevelled edges on all four sides to minimize risk of tripping

Selling Points

• Thickness: 9.4 mm
• Light duty
• Pebble pattern for non-directional traction
• IEC61340-4-1 (category DIF) resistance Rg 10⁶ - 10⁹ Ω
• Available per linear meter in 91 cm wide

Icons

• Custom Length
• Insulation
• Anti-Slip
• Anti-Fatigue
• Protection
• ESD - Anti-static
• Light Use

Accessories

• Compatible with ESD Floor Grounding Cord 051 Notrax accessories
• Compatible with ESD Floor Grounding Cord 51 Notrax accessories

Caractéristiques / Spécifications techniques

• High Hazard Seismic Zone: No
• Application: Industrial Environments
• Constant Water Supply: No
• Drive In: No
• Edges: Bevelled edges on all sides
• Material: Microcellular vinyl
• Material Group: Vinyl
• Process: Foaming
• CGA Fittings: No
• Cleaning and Maintenance: Use ESD mat cleaner
