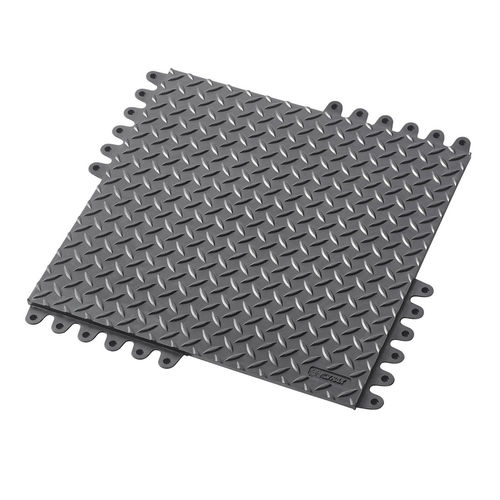

Anti-fatigue mat 574-BL series

ESDprotectionmodular

The De-Flex® ESD Nitrile FR 574 Notrax is a heavy duty modular rubber matting system designed for electro static discharge protection in industrial environments. These 45 x 45 cm tiles feature a diamond plate traction surface and are constructed from a static dissipative and fire retardant nitrile rubber compound. The modular tiles are equipped with a universal double-locking system on all sides, ensuring an extra strong and seamless connection for fast installation. The 19 mm thick platform insulates workers from hard ground, while bulleted domes underneath allow the mat to bend and flex with every movement, providing excellent anti-fatigue properties. Unique extended ramps prevent tripping and allow easy cart access, with smart bevelling solutions for both inside and outside corners. The mat is resistant to most industrial oils and is suitable for welding areas.

Product Features

• Modular rubber tiles with universal double-locking system for strong, seamless connection
• 19 mm thick platform insulates from hard ground and flexes with movement
• Extended ramp design prevents tripping and allows cart access
• Resistant to most industrial oils and suitable for welding areas

Product Description

• Extremely comfortable heavy duty anti-fatigue matting system
• Diamond plate traction surface for slip resistance
• Easily assembled for large areas or individual workstations

Selling Points

• Thickness: 19 mm
• Heavy duty modular rubber tiles
• R10 diamond pattern for freedom of movement
• 100% nitrile rubber compound

Icons/Properties

• Modular
• Insulation
• Anti-Slip
• Anti-Fatigue
• Oil Resistant
• Dry Areas
• Protection
• Welding
• Fire Retardant
• ESD - Anti-static
• Wheel and Cart Friendly
• Heavy Traffic
• Heavy Use

Technical Specifications

• High Hazard Seismic Zone: No
• Application: Industrial Environments
• Constant Water Supply: No
• Drive In: No
• Edges: Attachable bevelled edges are available
• Material: Static dissipative and fire retardant nitrile rubber compound
• Material Group: Nitrile rubber
• Process: Compression Moulding
• CGA Fittings: No
• Fire rating EU: EN 13501-1 Bfl-S1
• Available sizes: 45cm x 45cm, thickness 19 mm
• Weight: 3.3 kg (EA), 26.4 kg (Case)
• Unit of measurement: EA (piece), CS (case)
