Wireless remote control JK1600QI

with buttonsindustrial24-button

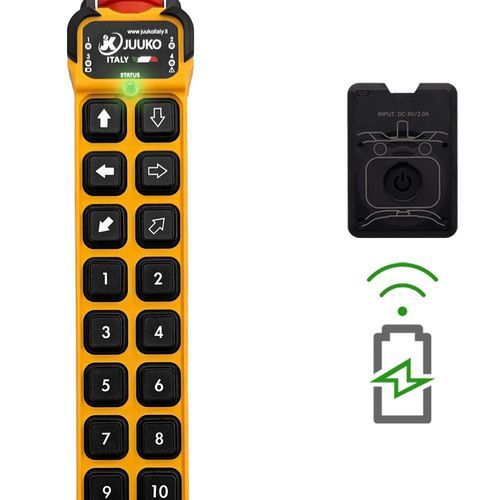

16 pushbuttons industrial remote control The JK1600QI transmitter with single step pushbuttons is equipped with an ergonomic shape for easy grip. At the top there are 2 high brightness red LEDs to indicate the battery level and error code anomalies, and 2 orange LEDs to indicate the insertion of auxiliary functions such as selecting single and double hoist, and 1 green status LED for remote control active. - WIRELESS CHARGING: The main Wireless "QI" charging standard has been adopted by hundreds of leading manufacturers and introduces the convenience of charging your device without using cables but simply by placing it on its Charging Pad. - 2 RED LEDS: Indicate errors and battery level. - 2 ORANGE LEDS: For functions insertion (e.g., selecting single/double hoist). - 1 GREEN LED: For status control active. Push-buttons Configuration - 1 START push-button - 1 EMO (STOP) mushroom - 16 push-buttons SINGLE STEP Number of Available ON/OFF Command - Max. 16 + Start & EMO Command Response Time - ~ 50 ms Frequency Band - 433.0525 > 434.7900 MHz Channel Space - 12.5 kHz Safety Performance of the STOP function (EN ISO 13849-1) - Pl d Radio Communication - Bi-directional continuous transmission Antenna Impedance - 50 Ohm Maximum Operating Distance - 100 Meters (free field) Hamming Distance - ≥ 15 Power Supply - LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 Dimensions - 291 x 57 x 51 mm Weight - 449g Degree Protection - IP65 Housing Material - PA6 (GF30%) Operating and Storage Temperature - (-20°C)~(+55°C) / (-40°C)~(+65°C) - (-4°F)~(+131°F) / (-40°F)~(+149°F) - Enveloping protective cover - Neck strap - Replacement standard button labels - QI pad wireless charging + micro USB cable (Pad dimensions: 77 x 55 x 6.5 mm) - External Antenna SMA connector Technical Specifications: - Push-buttons Configuration: 1 START push-button, 1 EMO (STOP) mushroom, 16 push-buttons SINGLE STEP - Number of Available ON/OFF Command: Max. 16 + Start & EMO - Command Response Time: ~ 50 ms - Frequency Band: 433.0525 > 434.7900 MHz - Channel Space: 12.5 kHz - Safety Performance of the STOP function (EN ISO 13849-1): Pl d - Radio Communication: Bi-directional continuous transmission - Antenna Impedance: 50 Ohm - Maximum Operating Distance: 100 Meters (free field) - Hamming Distance: ≥ 15 - Power Supply: LR6(AA) 1.5V / NiMH(AA) 1.2V x 2 - Dimensions: 291 x 57 x 51 mm - Weight: 449g - Degree Protection: IP65 - Housing Material: PA6 (GF30%) - Operating and Storage Temperature: (-20°C)~(+55°C) / (-40°C)~(+65°C) (-4°F)~(+131°F) / (-40°F)~(+149°F)
