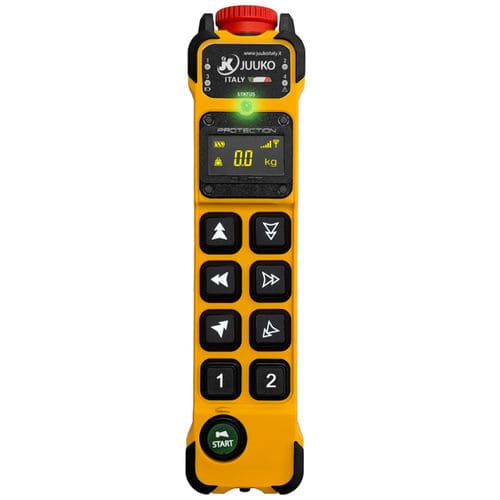

2.4 GHz radio transmitter JKD808QI

radio frequencywirelessIP65

Overview

• Ergonomic shape
• Programmable OLED display
• 4 LEDs for relay feedback
• 1 green LED for active status

Details
The transmitter features an ergonomic housing for secure grip. On the top panel there are two high-brightness red LEDs for battery level and error codes, two orange LEDs for auxiliary function confirmation (e.g., single/double hoist selection) and one green LED indicating the remote is active.

QI CHARGING
The device supports the Qi wireless charging standard, allowing cable-free recharging via a compatible charging pad integrated or associated with the transmitter.

The OLED Display
The centrally positioned OLED display shows battery status, signal strength, command direction and operating parameters, enabling quick and intuitive verification of essential information to improve control precision and safety during operation.

Available accessories

• Protective wrap-around case
• Shoulder strap
• Replacement standard button labels
• Wireless Qi charger + USB-C cable (pad dimensions: Ø 62 x 8.7 mm)
• External antenna with SMA connector

Technical specifications

• Configuration: 1 START; 1 EMO (STOP) mushroom; 1 configurable OLED display; 8 double-step push-buttons
• Number of ON/OFF commands available: Max. 8 + Start & EMO | Available outputs Max. 13
• Command response time: ~ 50 ms
• Frequency band: 2.4 GHz
• Control system: PLL
• Safety performance of the STOP function (EN ISO 13849-1): Plr = e
• Radio communication: Bi-directional continuous transmission
• Antenna impedance: 50 Ohm
• Maximum operating distance: 100 meters (free field)
• Hamming distance: ≥ 15
• Power supply: LR6 (AA) 1.5V / NiMH 1.2V x 2
• Dimensions: 242 x 57 x 51 mm
• Weight: 400 g
• Degree of protection: IP65
• Housing material: PA6 (GF30%)
• Operating and storage temperature: (-25°C)~(+55°C) / (-40°C)~(+65°C) ((-13°F)~(+131°F) / (-40°F)~(+149°F))
