Radio control JKD400QI

with configurable buttonswith buttonsfor remote control

Overview

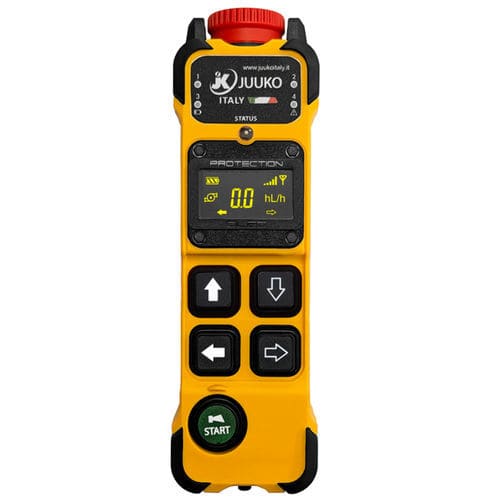

The JKD400QI industrial radio remote control transmitter by Juuko Italy features an ergonomic housing for comfortable grip, a programmable OLED display, four single-step push-buttons and five status LEDs. The transmitter is engineered for secure handling and provides clear operational information including battery level, error codes and auxiliary function indicators.

Key features

• Ergonomic shape for secure grip
• Programmable central OLED display for battery, signal strength, command direction and operating parameters
• 4 single-step push-buttons (configurable)
• 1 START push-button and 1 EMO (STOP) mushroom
• 5 status LEDs: 1 green for active status, 2 red high-brightness for battery/error and 2 orange for auxiliary indications

QI CHARGING
The transmitter supports the Qi wireless charging standard to recharge the device simply by placing it on a compatible charging pad, eliminating cable connections.

The OLED Display
The programmable OLED display delivers quick, intuitive feedback on battery level, signal strength, command direction and operating parameters to enhance precision and safety during operation.

Technical features

• Configuration: 1 START; 1 EMO (STOP) mushroom; 1 configurable OLED display; 4 single-step push-buttons
• Available ON/OFF commands: up to 4 + Start & EMO
• Command response time: approx. 50 ms
• Frequency band: 2.4 GHz
• Control system: PLL
• STOP function safety (EN ISO 13849-1): PLr = e
• Radio communication: bi-directional continuous transmission
• Antenna impedance: 50 Ω
• Maximum operating distance: 100 meters (free field)
