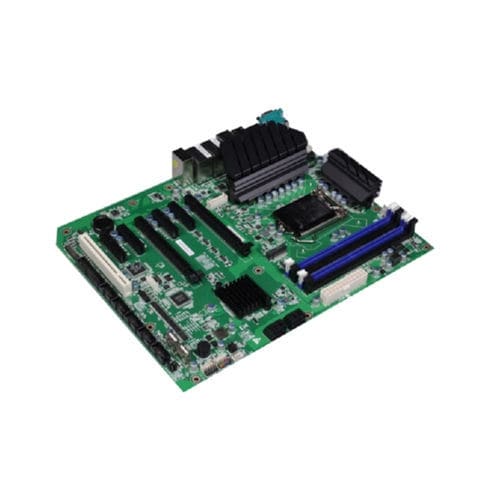

ATX motherboard AIoT0-W580

Intel® Core i3Intel® Core i5Intel® Core i7

The AIoT0-W580 is a high-performance ATX industrial motherboard, supporting 10th and 11th Gen Intel® CPUs with strong expandability and connectivity. It supports up to 128GB of DDR4 memory, offers multiple display interfaces, a variety of storage options, abundant USB and serial ports, and several PCIe expansion slots. Designed with industrial-grade standards, it features wide-temperature adaptability and reliability, making it suitable for a range of industrial and AI applications. CPUs above i5 support vPro High Tg-grade PCB for enhanced temperature stability Industrial-grade I/O protection against ESD and surges, ensuring system stability and reliability Optimized interface and expansion layout to minimize interference and facilitate expansion for industrial users Supports dual GPU card expansion for AI and machine vision applications Display controller - Intel CPU Integrated display controller (depending on the assigned CPU) Audio Rear IO supports MIC-In, Speaker-Out, Line-In, and three-hole audio Parallel port - 1 * parallel port Digital I/O - 16-bit digital I / O, providing power supply and ground, + 5V level LPC/eSPI 1 eSPI bus (2x6Pin can expand four serial ports) TPM interface - On board encryption chip SLB9670, supporting TPM2.0 Power supply Chassis front panel FPANEL1 and FPANEL2 Pin-header , choose one from two Operating temperature and humidity -10 ℃~60 ℃, relative humidity 0%~90%, no condensation, air pressure 85-105kPa Non-operating temperature and humidity -40 ℃~85 ℃, relative humidity 0%~90%, no condensation, air pressure 85~105kPa BIOS - AMI UEFI BIOS PCB dimensions (L*W) 305mm X 244mm
