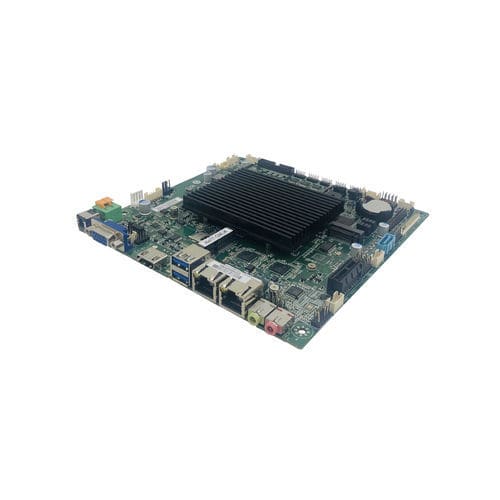

Mini-ITX motherboard AIoT7-GMLi4

Intel® Celeron® J4125Intel®DDR4 SO-DIMM

Adopts Intel J4125 board mount CPU, rich interface and bus, supports serial port power sweep gun, supports TTL level serial port device, supports digital quantity switch control interface, can be used for POS, lottery betting station, gaming machine, self-service equipment, can also meet some industrial automation applications. Display controller - Intel CPU Integrated display controller Audio - Rear IO : Mic-in, Line-out, Support chassis front panel audio, support amplifier audio output (4Pin wafer) Parallel/I²C/SMBus - 1 Parallel , 1 4Pin SMBus Digital I/O 8-digit I/O, providing power and ground, + 5V level 1 4Pin CashDrawer control interface LPC/eSPI 1 LPC bus TPM interface - Non Power supply - DC-Jack single 12V input, optional 2Pin Phoenix connector input DC Out power supply: 12V and 5V@500mA Operating temperature and humidity 0~60℃, 10%~90%, no condensation Non-operating temperature and humidity -40 to 80℃, 10% ~90%, no condensation Watch Dog - 255 level programmable seconds / minutes, support timeout interruption or system reset BIOS AMI UEFI BIOS PCB dimensions (L*W) 170mm*170mm
