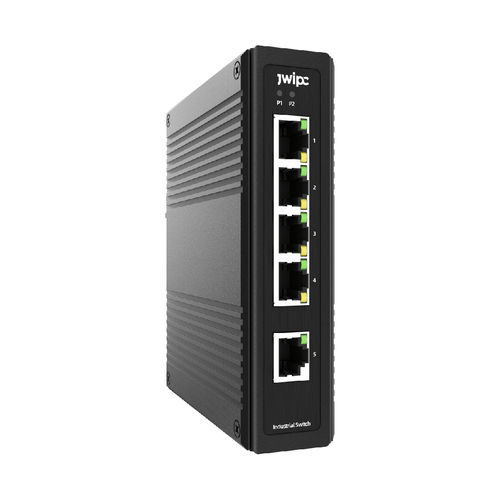

Unmanaged ethernet switch ISG305P

5 portsgigabitDIN rail

Industrial chip scheme, high standard industrial protection level, can be widely used in industrial automation, smart city, smart transportation and other industrial scenarios. Performance Switching capacity - 10Gbps Auto-negotiation - Supported Auto-MDI/MDIX Power budget - 60W LED Port LED - Green: link/active; Yellow: poe Power supply Input range 46~57VDC, Redundant dual power inputs. Connection 1 removable 4-contact terminal block(s) Overload Current Protection - Supported Reverse Polarity Protection Supported Mechanical Dimensions 135mm(L)×108mm(W)×35mm(H) Environment - Operating Temp. -40~75℃(-40~167 °F) Storage Temp. -40~85℃(-40~185 °F) Operating Humidity - 5 to 95% (non-condensing) Storage Humidity 5 to 95% (non-condensing) Standards and Certifications EMC EN 55032/24 EMI CE, CISPR 32, FCC Part 15B Class A EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF Safety - EN 60950-1、EN 60950-1 (LVD) Shock - IEC 60068-2-27 Vibration - IEC 60068-2-6 Freefall IEC 60068-2-31 WEEE Supported RoHS Supported
