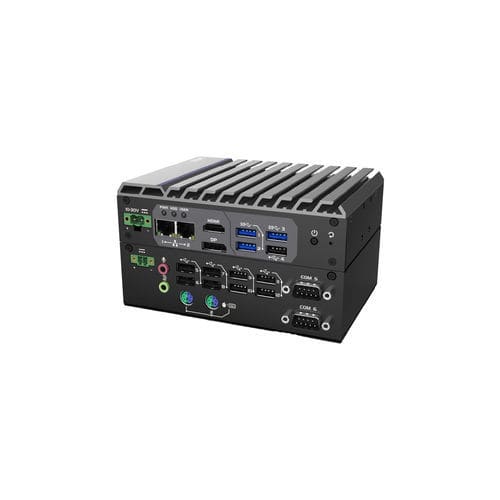

Box PC JEC-3012

wall-mountedDIN raildesktop

The JEC-3012 is an industrial BOX PC with Intel® Elkhart Lake J6413/J6412 processors, supporting up to 32GB DDR4 memory and dual HDMI+DP displays. It features two 2.5Gb Ethernet ports, multiple I/O options (including 14 COM ports and 12 USB ports), and supports 4G/5G modules. Its fanless, rugged design with industrial-grade protection makes it ideal for harsh environments BIOS AMI UEFI BIOS I/O interface - 1,keyboard&mouse LED - 1xPower, 1xHDD, 1xUser Graphics Graphics Processor - Intel®UHD Gen.10 Graphics Engines Audio Audio IC Realtek ALC897 Audio Interface 1xMic-in, 1xLine-out（2 in 1） LAN IC 2x i226V Power Power Input 10V to 30V, DC-in Power Interface - 2-Pole Phoenix DC plug in Others Watchdog Timer - 1 to 255 sec./min. per step TPM Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions 150mm(L)×107mm(W)×79.1mm(H) Weight 1.23KG Environment - Operating Temp. -10~60℃w/ 0.7m/s airflow Storage Temp. -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
