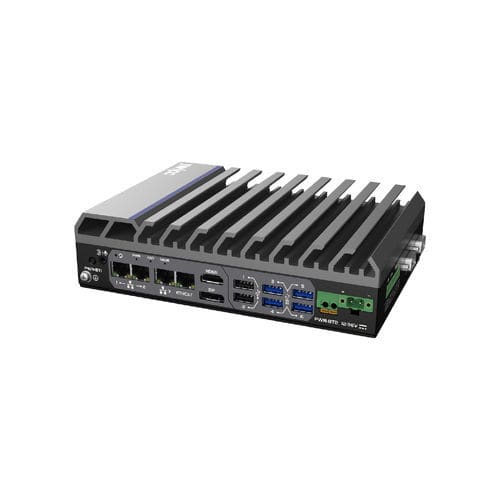

Box PC JET-5310

wall-mountedDIN raildesktop

The JET-5310 is an industrial-grade BOX PC supporting 11th Gen low-power CPUs with robust expandability. Designed for harsh environments, it delivers stable and efficient performance with multiple M.2 slots, RJ45 ports, and USB ports to support wireless connections and high-definition video devices. The JET-5310 uses high Tg wide-temperature PCB material, and its industrial-grade port protection effectively blocks static and surges, ensuring the safety of the system. System BIOS - AMI UEFI BIOS I/O interface GPIO 8 bit digital I/O LED - 1xPower, 1xHDD Expansion Graphics - Graphics Processor - Intel®UHD Gen.11 Graphics Engines Audio Audio IC Realtek ALC897 Audio Interface - 1xMic-in, 1xLine-out（2 in 1） LAN IC - 3x i226V, 1x i210AT Power Power Input 12V to 36V, DC-in Power Interface 2-Pole Phoenix DC plug in Others - Watchdog Timer - 1 to 255 sec./min. per step TPM - Infineon SLB9670 supports TPM 2.0 Mechanical Dimensions - 200.4mm(L)×140.4mm(W)×52.7mm(H) Weight 1.8KG N.W. Environment - Operating Temp. - -10~60℃w/ 0.7m/s airflow Storage Temp. -40~85℃ Humidity 10%~85% Humidity, non-condensing Shock With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration Vibration With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis
