- KABAN MAKINA SANAYI VE TIC. LTD. STI

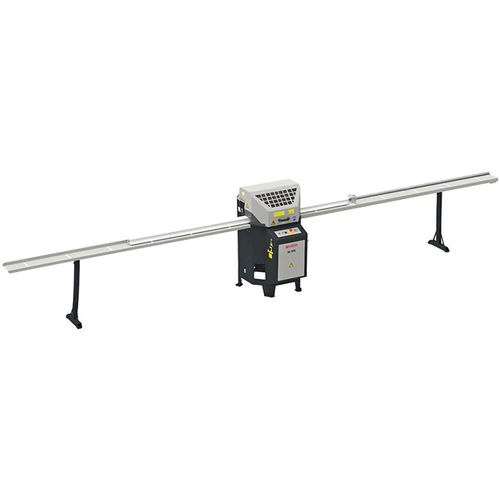

Single-head cutting machine AA 1025rotary bladefor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for aluminum, for steel
- Product handled
- profile
- Applications
- for industrial applications
- Configuration
- single-head
- Other characteristics
- 45°, 90°
- Operating pressure
Min.: 6 bar
(87.02 psi)Max.: 8 bar
(116.03 psi)- Overall length
6,655 mm
(262 in)- Maximum width
912 mm
(36 in)- Height
1,279 mm
(50 in)- Weight
287 kg
(632.73 lb)- Power supply
400 V
Description
- Precise Cutting at Angles Between 20°-160°
- Fixing Angles at 45° and 90° Thanks to Stoppers
- Easy and Precise Angle Adjustment with Vertical Bearing System
Design
- Robust mechanical design allows you to process products of aluminum and steel profiles for many years with maximum quality at high speed.
- It decisively cuts aluminum and PVC profiles at angles between 20° and 160°.
- Visual reference points for each 1° cut.
- Thanks to the supports, the angles can be fixed at 45° and 90°.
- There are 2 top press pistons for profile fixing.
- 2 top press pistons can be added to fix the profile.
- With the vertical bearing system, the angles are adjusted easily and precisely.
- Reference points for every 5° in the angle setting.
Saw
- 3.300 rpm circular saw with a diameter of 400 mm.
- Adjustable saw progress speed.
- Cooling system as standard
Safety
- Automatic protection cover
- Double hand safety system
- Security labels
VIDEO
Catalogs
No catalogs are available for this product.
