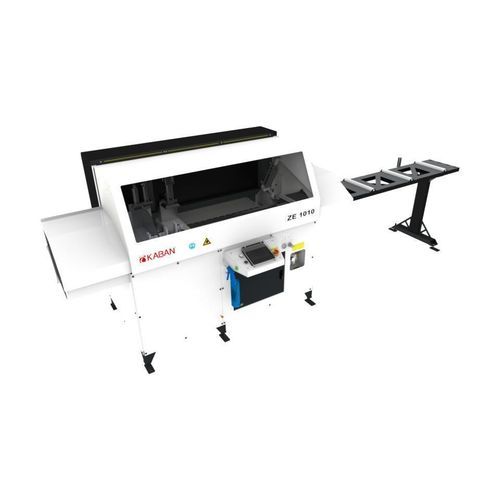

Aluminum cutting machine ZE 1010

profilefor aluminum profilesservo-driven

The ZE 1010 is an aluminium connector cutting machine engineered for high-speed, accurate 90° cuts on aluminium profiles, with servo-driven automatic feeding and an operator-friendly 7" touchscreen (Kaban interface). It pairs a stress-relieved mechanical structure with servo controls and safety protections for continuous production.

Highlights

• High-speed-capable mechanical structure designed for consistent 90° cuts.
• Servo-driven lift/slide/release and cut-and-run systems to avoid scratches and enable continuous cutting.
• Pneumatic clamping on front and top surfaces for secure profile fixation.
• Ø 500 mm saw with servo speed control and coolant spray.
• 7" touchscreen HMI (Kaban) and Mitsubishi PLC control.

Design

• Stress-relieved cast and welded components to maintain precision at high speed.
• Pneumatic horizontal and vertical clamps to stabilise profiles during cutting.
• Protective covers over hazardous areas to meet safety requirements.

Control Panel

• 7" touchscreen with Kaban interface for programming and monitoring.
• Mitsubishi PLC for cycle control and safety management.
• Automatic air and cutting-fluid spray on profiled surfaces to assist cleaning and cooling.
• Automatic operation: cutting cycles continue automatically once the profile is positioned.

Saw

• Ø 500 mm blade with cut-and-run operation.
• Servo-controlled speed adjustment according to profile section.
• Coolant / cutting-fluid spray system to manage temperature and chip evacuation.
• Ability to define multiple cutting speeds for different profile types.

Length Driver

• Servo-controlled lift, drive and release system for precise cuts without scratching.
• Maximum cutting length: 960 mm.
• Minimum cutting length: 140 mm.

Safety

• Protection covers and safety labels around moving parts.
• Designed to integrate machine guards and emergency stops per industrial standards.

Technical Support

• Programmable periodic maintenance reminder function.
• Remote connection capability for diagnostics and service support.

Technical specifications

• Model: ZE 1010
• Application: Aluminium connector/profile cutting at 90°
• Saw diameter: Ø 500 mm
• Feeding system: Servo-controlled automatic feeding with cut-and-run
• Control: Mitsubishi PLC; 7" touchscreen (Kaban interface)
• Clamping: Pneumatic clamps (front and top); horizontal/vertical vices
• Cutting modes: Lift, slide, cut-and-run; servo-controlled multi-speed saw
• Cooling/lubrication: Cutting fluid / coolant spray; automatic air purge
• Cutting length range: 140 mm (min) — 960 mm (max)
• Safety: Protective covers and safety labels
• Support: Maintenance reminders and remote service support
