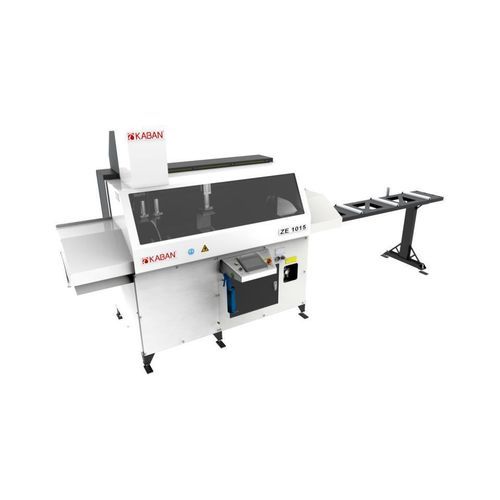

Aluminum profile cutting machine ZE 1015

servo-drivendrillingtapping

The ZE 1015 is an industrial machine for 90° slicing of aluminum profiles, engineered for high-speed operation with repeatable accuracy. It integrates a servo-driven saw, pneumatic clamping, automatic feeding and optional integrated drilling and tapping units for combined processing.

Highlights

• Mechanical structure designed for high-speed operation and consistent accuracy.
• Servo-controlled lift, sliding and cut-and-run systems for efficient slicing cycles.
• Pneumatic clamping on front and top surfaces to secure profiles during machining.
• Enclosed safety covers and safety labeling for operator protection.

Design

• Stress-relieved cast and welded components to maintain repeatable accuracy at speed.
• Pneumatic clamps (horizontal and vertical) to stabilize profiles during cutting.
• Enclosed guards to minimize operator exposure to moving components.

Control Panel

• 7" touchscreen interface with user-oriented control for job management and cycle automation.
• Mitsubishi PLC control for reliable automation and sequence management.
• Automatic coolant/air spray on profiled surfaces to assist cutting and reduce debris.
• Automatic cycle operation: the cutting sequence runs once the profile is positioned.

Saw

• Large-diameter saw (Ø 500 mm) with servo-controlled operation and selectable multi-speed settings per profile type.
• Saw cut-and-run mechanism and cutting coolant spray to support continuous high-quality cutting.

Hole Drilling & Tapping

• Integrated drilling and tapping unit with servo-controlled positioning for accurate hole placement.
• Process programming with large memory and drilling coolant to support machining operations.

Length Driver / Feeding

• Servo-controlled lift, drive and release system to transport profiles without scratching.
• Automatic profile feeding and slicing for hands-free operation.
• Feeding length range: minimum 140 mm, maximum 960 mm.

Safety

• Protection covers and visible safety labels to enhance operator safety and regulatory compliance.

Technical Support

• Periodic maintenance reminder and remote service support capabilities.

Technical specifications

• Model: ZE 1015
• Saw diameter: Ø 500 mm
• Cutting angle: 90°
• Touchscreen: 7" touchscreen control
• Control system: Mitsubishi PLC
• Feeding length: Minimum 140 mm; Maximum 960 mm
• Hole drilling: Maximum tool diameter Ø 12 mm; Y-axis positioning travel 260 mm; servo-controlled positioning; tapping function
• Servo systems: Servo-controlled automatic feeding, slicing and saw speed adjustment (multiple speeds per profile)
• Clamping: Pneumatic clamping on front and top surfaces
• Coolant systems: Cutting and drilling coolant/air spray systems
• Auxiliary units: Integrated drilling & tapping unit; process programming with large memory
• Safety: Protection covers and safety labels
