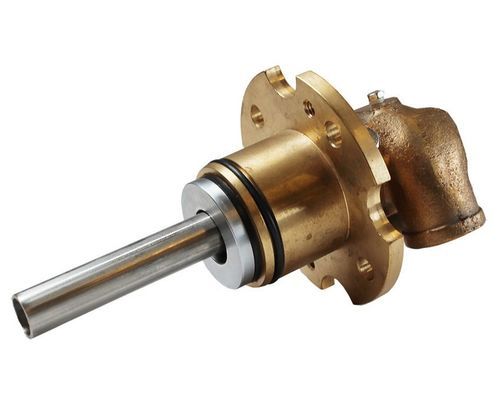

Multi-passage rotary union C-Cast

for the steel industryfor continuous casting applicationswith seal

The C-Cast rotary union is available in both external and internal (journal-inserted) mounted options and single- and dual-flow configurations. The internal-mounted, or journal inserted configuration, is the most popular and is found on the majority of continuous casting machines in North America and Europe. The C-Cast rotary union features a large bearing area, deep grease galleys, and two Quad-Seal O-rings that keep contaminants out of the sealing area. With a minimum of moving parts and low maintenance requirements, the C-Cast is preferred by steel makers and OEMs worldwide. The C-Cast union is rated up to 250°F (121°C), 150 psig (10 bar), and 100 rpm. - Minimum moving parts - Permanently lubricated - Large bearing area - Simple design for easy operation - Low maintenance requirements - Provides shock and vibration resistance Have an application that requires a specialized solution? Kadant Johnson’s product innovation team focuses on making the best solution in the shortest time possible. Kadant Johnson’s engineering team is committed to providing technology that meets customers’ application demands. Our goal is to work closely with our customers to develop reliable, efficient, and technically advanced products that add value by improving the process and the quality of the end product.
