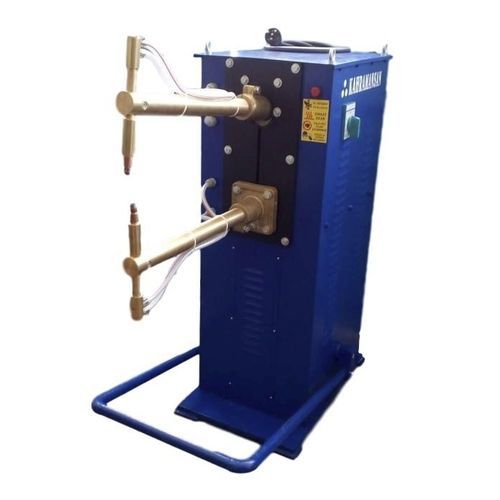

Spot welding machine KAP20manualstandalonesteel sheet metal
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- manual
- Configuration
- standalone
- Applications
- for steel, for carbon steel, for stainless steel, steel sheet metal
- Power supply
- 380V three-phase
- Other characteristics
- CE, water-cooled, cost-effective, heavy-duty, with foot pedal
- Power
Max.: 15,000 W
12,000 W
Min.: 1,500 W
- Weld thickness
Max.: 2.5 mm
(0.1 in)2 mm
(0.1 in)Min.: 0.5 mm
(0 in)
Description
Technical Specifications:
Operated: Pedestal
Power: 20KVA
Welding Capacity: 3+3mm mild steel
Protection Fuse: 63A
Power Level: 5
Arm Length: 600mm
Arm Diameter: 50mm
Cooling: Water cooling (8L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 450m x 1100mm x 1250mm
Weight: 218Kg
