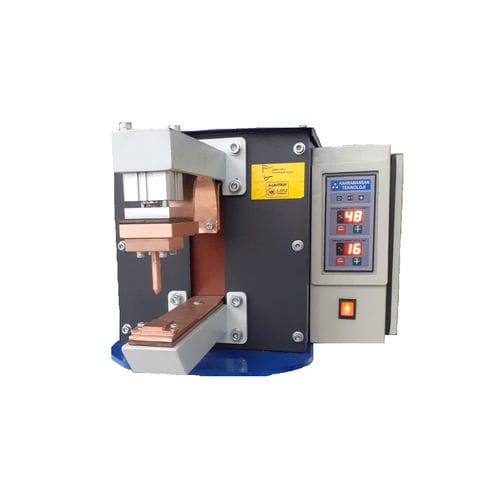

Spot welding machine KMP5semi-automaticstandalonefor steel
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- semi-automatic
- Configuration
- standalone
- Applications
- for steel, for carbon steel, for stainless steel, for copper, galvanized steel, for wire
- Power supply
- 220V single phase
- Other characteristics
- precision, compact, pneumatic, CE, programmable, cost-effective, heavy-duty
- Power
4,000 W
Max.: 5,000 W
Min.: 500 W
- Weld thickness
1 mm
(0 in)Max.: 1.5 mm
(0.1 in)Min.: 0.5 mm
(0 in)
Description
Technical Specifications:
Pressure: 2-4 bar
Power: 5kVA
Welding Capacity: 1.2 + 1.2mm mild steel
Maximum Force: 150-300 daN
Protection Fuse: 220V / 40A
Power Level: %0-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller
Arm Length: 350mm
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 400mm x 800mm x 550mm
Weight: 85Kg
