Projection welding machine KHP90
spotsemi-automaticstandalone

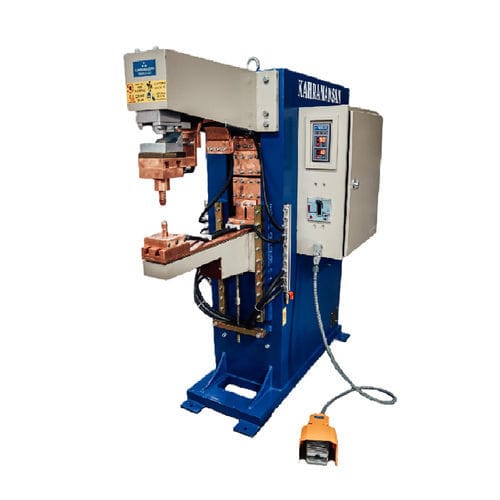

Projection welding machine - KHP90 - KAHRAMANSAN TEKNOLOJİ - spot / semi-automatic / standalone
Projection welding machine - KHP90 - KAHRAMANSAN TEKNOLOJİ - spot / semi-automatic / standalone
Projection welding machine - KHP90 - KAHRAMANSAN TEKNOLOJİ - spot / semi-automatic / standalone - image - 2
Add to favorites
Compare this product

Characteristics

Technique
spot, projection
Operational mode
semi-automatic
Configuration
standalone
Applications
for metal, for carbon steel, steel sheet metal, mesh
Power supply
380V three-phase
Other characteristics
pneumatic, CE, water-cooled, cost-effective, heavy-duty
Power

72,000 W

Min.: 9,000 W

Max.: 90,000 W

Weld thickness

4 mm
(0.2 in)

Min.: 1 mm
(0 in)

Max.: 5 mm
(0.2 in)

Description

Technical Specifications: Operated: Pneumatic Pressure: 4-8 bar Power: 90KVA Welding Capacity: 5+5mm mild steel Maximum Force: 305-610 daN Protection Fuse: 200A Power Level: %0-99 power adjustable by digital microcontroller Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller Arm Length: 550mm Cooling: Water cooling (15L/min) Power Input Cable: 3m Protection Class: IP21 Dimensions (W/L/H): 450m x 1500mm x 1750mm Weight: 790Kg
