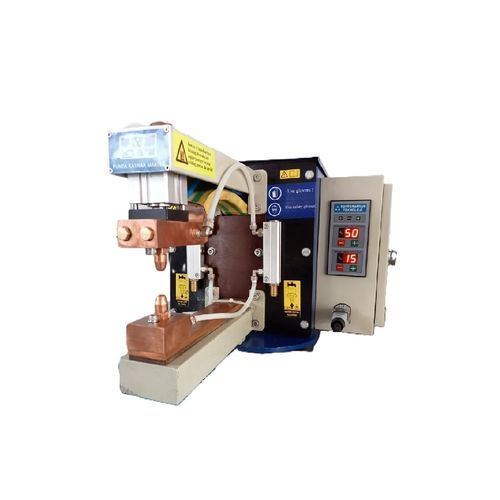

Spot welding machine KMP10semi-automaticstandalonesteel sheet metal
Add to favorites
Compare this product
Characteristics
- Technique
- spot
- Operational mode
- semi-automatic
- Configuration
- standalone
- Applications
- for steel, for carbon steel, for stainless steel, galvanized steel, steel sheet metal
- Power supply
- 380V three-phase
- Other characteristics
- precision, compact, pneumatic, CE, water-cooled, programmable, cost-effective, heavy-duty
- Power
Min.: 1,000 W
Max.: 10,000 W
8,000 W
- Weld thickness
Min.: 0.5 mm
(0 in)Max.: 2 mm
(0.1 in)1.5 mm
(0.1 in)
Description
Technical Specifications:
Operated: Pneumatic
Pressure: 2-6 bar
Power: 20kVA
Welding Capacity: 2 + 2mm mild steel
Maximum Force: 150-450 daN
Protection Fuse: 63A
Power Level: %0-99 power adjustable by digital microcontroller
Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller
Arm Length: 550mm
Cooling: Water cooling (8L/min)
Power Input Cable: 3m
Protection Class: IP21
Dimensions (W/L/H): 450m x 1000mm x 600mm
Weight: 85Kg
