Distribution electrical enclosure

controlswitchingDIN rail

Product overview

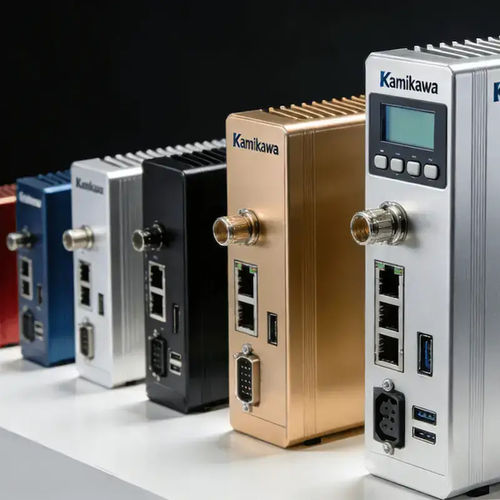

Custom aluminum enclosure designed for electronic equipment and PCB assemblies. Manufactured from certified aluminum alloys with options for extruded profiles and precision CNC machining to match exact dimensions, cutouts and mounting requirements. Engineered for thermal management, EMI/RFI shielding and environmental protection.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key features

• Fully customizable dimensions and internal layout to fit PCB size and components
• Precision CNC machining for ports, connector cutouts and mounting bosses
• Wide selection of extrusion profiles (300+ standard options) to reduce tooling and lead time
• Surface finishes: anodizing, sandblasting, powder coating, brushing, laser engraving and silk printing
• Optional sealing solutions and gaskets for IP-rated enclosures
• Low MOQ: prototypes and single-piece custom orders supported

Core advantages

• Exact fit for PCB and internal components to simplify assembly and reduce rework
• Improved heat dissipation thanks to aluminum construction and thermal paths
• Effective EMI/RFI shielding options for reliable signal performance
• Durable, corrosion-resistant housing suitable for indoor and outdoor applications
• Lightweight design that maintains mechanical strength
• Custom branding through engraving, printing and color matching

Custom services

• Free 3D design and technical drawings based on CAD, PCB layout or sample parts
• Custom internal brackets, partitions, standoffs and mounting rails
• Precision openings for connectors, displays, buttons and ventilation
• Personalized surface treatment and logo processing
• One-stop service: design, prototyping, CNC production and finishing
• Technical support during development, testing and production ramp-up

Common applications

• Industrial control and automation enclosures
• Custom housings for PCB modules and electronic instruments
• Medical device enclosures and diagnostic equipment
• Communication, networking and telecom equipment
• Power supplies, battery housings and inverters
• Indoor and outdoor electronic device enclosures

Design-to-production workflow
Project starts from customer specifications (CAD, PCB layout, environmental and mounting requirements). Engineering delivers 3D models and technical drawings for approval. After approval, prototype samples are produced for fit, function and finish validation, followed by high-precision CNC production and quality control using certified aluminum alloys.

Complementary product lines
Available complementary options include waterproof/IP-rated series, profile-style extruded housings for multi-component systems and modular panel kits for rapid assembly.

Frequently asked questions (summary)

• What is a Custom Aluminum Enclosure? — A tailored housing manufactured to customer dimensions and specifications.
• What customization options are available? — Sizes, CNC cutouts, internal fixtures, finishes, EMI shielding and IP-grade sealing.
• Can you work from my CAD files? — Yes, CAD and PCB layout files (STEP, DWG) are supported.
• Lead time for custom orders? — Prototypes: typically 7–15 days; bulk lead time depends on complexity and quantity.
• Which industries use these enclosures? — Industrial automation, medical, IoT, telecom, automotive and marine applications.

Technical specifications

• Material: high-quality aluminum alloys (various grades available)
• Surface treatments: anodizing, sandblasting, powder coating, brushing, laser engraving, silk printing
• Sealing/protection: selectable sealing solutions up to IP67 (application dependent)
• EMI/RFI: options for shielding treatments and conductive coatings
• Thermal: aluminum construction for efficient heat dissipation
• Customization: CNC cutouts, mounting rails, standoffs, internal brackets and partitions
• Existing profiles: 300+ extrusion profiles with available CAD/STEP models
• MOQ: supports 1-piece prototypes and scalable volume production
• Typical prototype lead time: 7–15 days (subject to complexity)
• Documentation: specification sheets and 3D files available
