Distribution electrical enclosure SC-200X100X50

controlswitchingDIN rail

Product Overview

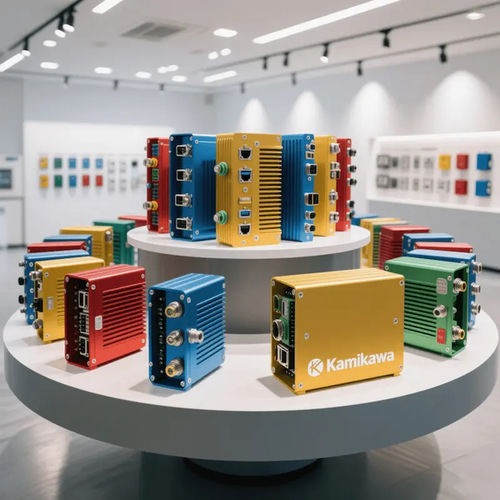

Made from aluminum alloy 6063/6061, the extruded enclosure SC-200X100X50 is a modular housing for electronic assemblies, PCBs and industrial devices. It provides heat dissipation, EMI/RFI shielding and environmental resistance for indoor and outdoor installations.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key Features

• Material: aluminum alloy 6063 / 6061
• Custom lengths, widths and heights available; standard and fully customized dimensions
• Free mold fee for over 300 existing profiles; standard profiles available
• Prototype support from 1 piece; mass-production MOQ example: 500 sets
• Precision CNC machining for cutouts, mounting holes, internal structures and custom logos
• Surface finishes: sandblasting, anodizing, powder coating (including corrosion-resistant anodized options)
• Custom packaging with individual color boxes

Core Advantages

• Improved heat dissipation to protect PCBs and power components
• EMI/RFI shielding for stable signal performance
• Corrosion resistance suitable for indoor and outdoor use; IP sealing options up to IP67
• Lightweight and rigid compared with steel, facilitating installation and transport

Customization & Services

• Free 3D design based on PCB or project requirements (STEP/3D files available for many profiles)
• Custom CNC cutouts, mounting holes and internal modifications
• Laser engraving and silkscreen printing for logos or part numbers
• Standard end caps made from 2.0 mm flat aluminum plates; custom end caps available
• Custom accessories and packaging for international shipping

Common Applications

• Industrial automation and PLC control systems
• PCB assemblies and consumer electronics
• 5G telecom and communication equipment
• Renewable energy inverters and battery systems
• Outdoor IoT devices and environmental sensors
• Medical diagnostic and testing instruments

Notes from Product Content / Table
Referenced Model No.: SC-200X100X50. Prototype orders supported from 1 piece; mass-production MOQs may apply (example: 500 sets). Over 400 open-source CAD/STEP files available for many standard profiles; standard profiles often allow length adjustments without new mold fees.

Technical specifications

• Model: SC-200X100X50
• Material: Aluminum alloy 6063 / 6061
• Dimensions: customizable (example: 200×100×50 mm)
• Finish options: sandblasting, anodizing, powder coating
• Thermal: suitable thermal conductivity and heat dissipation for high-power electronics
• EMI/RFI: electromagnetic shielding available
• Environmental: corrosion resistance; IP sealing upgradable (up to IP67)
• Customization: unlimited dimensional customization; CNC machining; laser engraving; silkscreen printing
• End caps: standard 2.0 mm flat aluminum plates; customizable
• Tooling: free mold fee for many existing profiles (300+)
• 3D/CAD: STEP / 3D models available for many profiles
• MOQ: prototype from 1 piece; mass-production example 500 sets
• Packaging: custom packaging including individual color boxes
