Extruded aluminum case

transportanodized aluminumaluminum profile

Overview

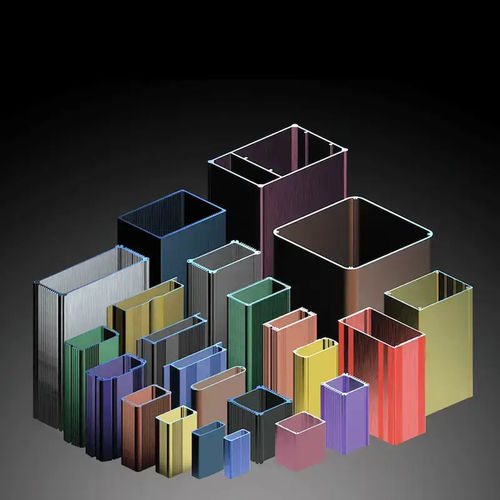

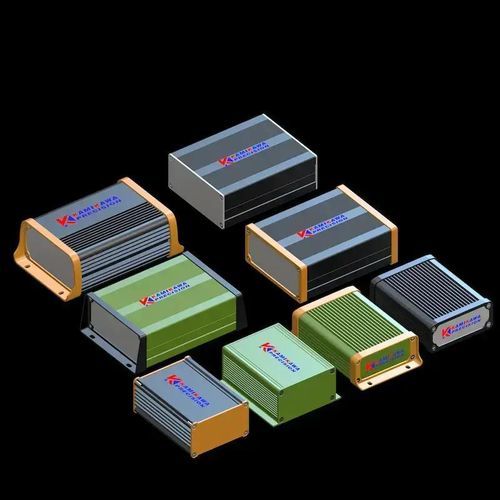

Our aluminum extrusion enclosure is a high-rigidity modular housing produced by precision aluminum extrusion. The integrated grooved profile provides efficient passive heat dissipation and a split-style modular design for flexible assembly of electronic modules, industrial equipment and instrument housings.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key Features

• Integral extruded grooved profile with consistent cross-section and no splicing gaps
• Modular groove system for simple assembly, disassembly and accessory mounting
• Unlimited length cutting and bespoke dimension options
• Precision CNC machining for custom ports, mounting holes and display cutouts
• Sandblasting and anodized surface treatment; additional finishes available
• Options for laser engraving, silk-screen logos and custom packaging
• Extensive existing extrusion dies to shorten lead time and reduce tooling costs

Core Advantages

• Built-in heat-dissipation grooves for effective passive cooling of electronics
• High structural rigidity with resistance to vibration, impact and deformation
• Good corrosion and UV resistance for indoor and outdoor use
• Lightweight modular design that saves installation space and assembly time
• Stable extrusion tolerances ensure high compatibility in assemblies
• Basic EMI shielding; conductive coatings or oxidation treatments available to enhance shielding

Customization & CNC Services

• Free 3D structural design support for extrusion enclosure integration
• Custom internal PCB standoffs, mounting brackets and partition structures
• Tailored cutout layouts for switches, connectors and displays
• Custom surface colors, finishes and brand marking options
• Flexible minimum order quantities for prototypes and volume production
• One-stop service from extrusion processing to finished assembled products

Common Applications

• Modular industrial automation control systems
• Long-strip PCB modules and multi-board combined devices
• Communication and network equipment enclosures
• Industrial power supplies and power conversion modules
• Smart IoT devices and industrial monitoring equipment
• Commercial electronic integrated installation systems

Why Choose This Extruded Aluminum Enclosure
Extruded aluminum enclosures combine lightweight construction with effective thermal conduction and mechanical stability. Compared with many plastics or steels they offer improved impact, dust, moisture and heat resistance. Split-style modular designs simplify assembly and maintenance and support both prototyping and mass production. Available sealing and gasket solutions enable IP67/IP68 performance where required.

Technical Specifications

• Manufacturing: Aluminum extrusion with precision CNC end-processing
• Structure: Integral extruded grooved profile, split-style housing
• Thermal: Passive heat dissipation via built-in grooves and aluminum conductivity
• Surface treatments: Sandblasting, anodizing; other finishes on request
• Environmental protection: Options to achieve IP67/IP68 with high-quality seals
• Mechanical: High structural rigidity, vibration and impact resistance
• EMI: Basic EMI shielding; enhanced shielding available with conductive coatings
• Customization: Unlimited length cutting, bespoke cutouts, mounting features, custom colors and logos
• Documentation: Specification sheets and STEP/3D CAD models available for standard profiles
• Production: Low MOQ (prototype from 1 piece) and scalable mass-production capability
