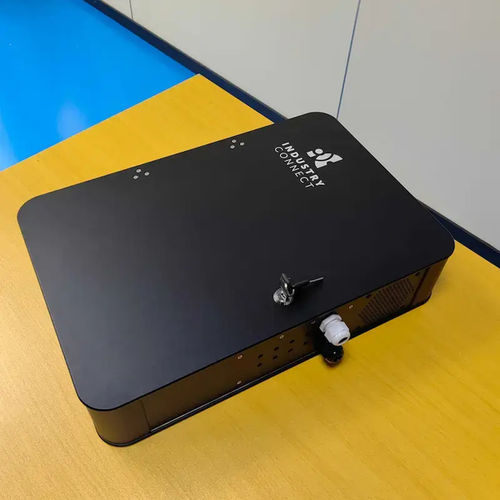

Distribution electrical enclosure

controlswitchingDIN rail

Core Advantages

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

• IP67 waterproof enclosure, certified for 1 m immersion and designed for continuous outdoor exposure.
• High-grade 6063-T5 aluminum alloy housing with anodized finish for corrosion and UV resistance.
• Integrated heat-sink design for passive thermal management of PCBs and outdoor electronics.
• Reinforced silicone/rubber gasket sealing to prevent dust, moisture and insect ingress over long service life.
• Vibration-resistant mechanical structure suitable for pole, wall and industrial site installations.

Custom Services

• Custom enclosure dimensions based on PCB layout and mounting requirements.
• CNC-machined cutouts for cable glands, antennas and outdoor connectors.
• Laser engraving for part numbers, logos or IP markings on the enclosure surface.
• Custom mounting brackets, pole adapters and wall-mount kits available on request.

Common Applications

• Outdoor IoT sensors, smart agriculture devices and environmental monitoring stations.
• Telecom equipment (including 5G remote units), streetlight controllers and remote monitoring units.
• Solar inverters, battery management systems and renewable energy installations.
• Industrial automation control boxes deployed in harsh factory or field environments.
• Weather stations, traffic control equipment and public safety devices.

Customization & CNC Machining for Waterproof Enclosures (summary)
The enclosure is manufactured from 6063-T5 aluminum and supports extensive CNC machining services: precision cutouts for connectors, cable glands and antennas; threaded inserts; and bespoke mounting features. Surface options include sandblasting, anodizing and optional powder coating. Laser engraving and prototype runs are supported; free mold fees may apply for larger production volumes.

Long-Term Durability & Weather Protection
Designed to meet IP67 standards with a reinforced sealing system, the enclosure resists ingress of water, dust and humidity. The anodized aluminum body provides corrosion resistance suitable for coastal and industrial environments. Units undergo pressure tests, temperature cycling and impact assessments to validate durability. Operational temperature range: -40°C to +85°C.

Versatile Applications & Use Cases
Suitable for stationary and mobile installations: wall, pole or rack mounting. Internal rails, brackets or dividers can be added to organize components. Typical use cases include telecom base stations, marine navigation equipment, remote telemetry and solar energy controllers.

Key Specifications (as presented)

• Material: 6063-T5 aluminum alloy (anodized finish).
• IP Rating: IP67 — dust-tight and protected against immersion to 1 m for 30 minutes.
• Operating Temperature: -40°C to +85°C.
• Thermal Management: Integrated heat-sink design for passive PCB heat dissipation.
• Sealing: Reinforced silicone/rubber gasket for long-term protection.
• Mechanical: Vibration-resistant design for pole, wall and rack mounting.
• Corrosion Resistance: Anodized surface; suitable for coastal/industrial exposure.
• Finishes: Sandblasting + anodizing; optional powder coat.
• Customization: CNC cutouts, laser engraving, custom sizes, mounting accessories.
• Testing: Pressure checks, temperature cycling and impact tests.
• Standard Accessories: Pre-drilled mounting holes; optional internal rails/brackets/dividers.

Installation & Technical Support (summary)
Multiple installation configurations supported (flanges, ear mounts, built-in brackets) with pre-drilled mounting holes for fast assembly. Installation guides, assembly drawings and engineering support for custom designs and compliance checks are available.

Frequently Asked Questions (summary)

• What customization options are available? Unlimited sizes, CNC cutouts, laser marking, surface finishes and internal mounting features. Prototypes supported from 1 piece.
• How long does a custom enclosure take? Typical lead time 7–14 business days including design approval; complex designs may require longer and fast-track options are available.
• Are these suitable for all outdoor conditions? With IP67 sealing and anti-corrosion treatments, they resist rain, dust, humidity and temperature variations; anodized aluminum improves UV and chemical resistance.
• Do you provide 3D design support? Engineering support and free 3D modeling/layout services are available for fit verification prior to production.

Technical characteristics / specifications

• Material: 6063-T5 aluminum alloy (anodized finish).
• IP Rating: IP67 (waterproof to 1 m for 30 minutes; dust-tight).
• Operating Temperature Range: -40°C to +85°C.
• Thermal Management: Built-in heat-sink for passive dissipation.
• Sealing: Reinforced silicone/rubber gasket.
• Mechanical: Vibration-resistant; pole, wall and rack mounting.
• Corrosion Resistance: Anodized; suitable for coastal/industrial environments.
• Finishes: Sandblasting + anodizing; optional powder coat.
• Customization: CNC cutouts, laser engraving, custom sizes, accessories.
• Testing: Pressure, temperature cycling and impact assessments.
• Standard Accessories: Pre-drilled mounting holes; optional internal rails/brackets/dividers.
