Product overview

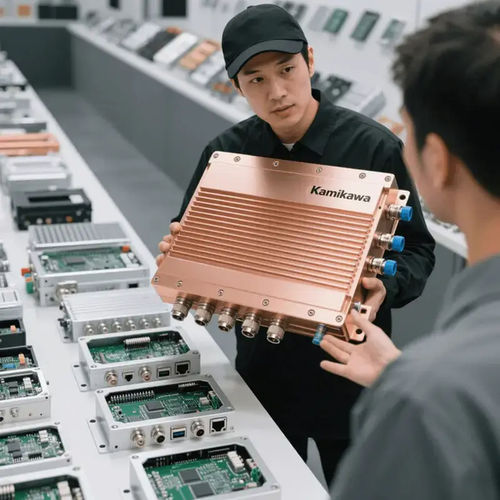

Our Waterproof Electronic Enclosure (Model No.: SC-PY001-01) is a rugged, high-performance housing made from premium all-aluminum alloy designed to protect sensitive electronics in harsh environments. It delivers IP68-rated waterproof, dustproof and UV-proof performance and provides strong passive heat dissipation to keep PCBs stable and reliable.

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

Key features

• IP68-rated waterproof, dustproof and UV-proof protection for outdoor and harsh-environment use
• Made of high-strength all-aluminum alloy for durability, corrosion resistance and good thermal conductivity
• Surface treatment: sandblasting followed by hard anodizing for scratch-resistant, long-lasting finish
• High-elastic silicone sealing strips in top and bottom covers to ensure tight waterproof/dustproof barrier
• Standard dimensions available with optional mounting flanges; flexible installation options
• No mold fees for customized orders starting from 1 set for standard profiles; over 300 existing profiles available
• Customizable mounting holes, logo marking, laser/UV logos and custom color box packaging with foam inserts

Core advantages

• Strong heat dissipation to maintain safe and stable PCB temperature
• Lightweight (aluminum) while remaining impact- and vibration-resistant
• Excellent corrosion resistance (anodized aluminum) suitable for humid/coastal/chemical environments
• Flexible customization and precision CNC machining for ports, cable glands and cutouts

Customization options (available)

• Customized LOGO
• Customized Color
• Customized Mounting Hole
• Customized Packaging
• Get 2D drawing
• Get 3D drawing (STEP/3D model)
• Customized accessories
• Quantity options (QTY)

Standard size specification (examples from available standard profiles)

• With installation flange / No strap mounting flange (options)
• K100x70-A
• K100x70-B
• K110x75-A
• K110x75-B
• K120x80-A
• K120x80-B
• K130x85-A
• K130x85-B
• K140x90-A
• K140x90-B
• K150x100-A
• K150x100-B
• K150x120-A
• K150x120-B
• K160x110-A
• K160x110-B
• K170x120-A
• K170x120-B
• K180x130-A
• K180x130-B
• K190x120-A
• K190x120-B
• K190x140-A
• K190x140-B
• K200x150-A
• K200x150-B

Sizes above 200x150 mm require full customization; MOQ for sizes above 200x150 mm is >500 pcs.

Applications

• Aviation & airport systems
• Urban traffic, rail and high-speed rail signal/control equipment
• Mining & heavy industry control systems
• Smart agriculture sensors and IoT devices
• EV charging stations, renewable energy inverters and battery management systems
• Environmental monitoring sensors and data loggers
• Heating & gas supply control systems

Electronic Enclosure Specifications
Specification sheet available (detailed aluminium extrusion enclosure specification document referenced on the product page).

Technical specifications

• Material: high-grade all-aluminum alloy (recyclable); heat-treated for enhanced strength
• Ingress protection: IP68 (waterproof and dustproof)
• Surface finish: sandblasted and hard anodized (scratch and UV resistant)
• Sealing: high-elastic silicone sealing strips for top and bottom covers
• Thermal: aluminum body provides passive heat dissipation; design optimized for thermal conduction
• Mechanical: lightweight, vibration- and impact-resistant construction suitable for industrial use
• CNC machining: precision cutouts for ports, cable glands and mounting holes available
• Packaging: optional custom color box with foam inserts
• Model reference on page: SC-PY001-01
• Standard profile library: over 300 profiles available for no-mold-fee customization starting from 1 piece
• Standard size MOQ note: sizes above 200x150 mm require customization and higher MOQ (>500 pcs)
