Product Overview

We offer over 400 different sizes of extruded aluminum enclosures. All specifications require no additional mold costs, MOQ 1PC, and our prices are at least 30% cheaper than our competitors.

You can directly download the Extruded Aluminum Enclosure drawings (without copyright restrictions) suitable for your products from our official website (Electronic-Enclosure) | 3D Model Library.

Our website features an online interactive 3D model viewing function, allowing you to view 3D models via mobile phone, computer, or mobile device. It supports quick online product specification searches, 3D drawing downloads, likes and comments, and online inquiries. Welcome to visit our official website.

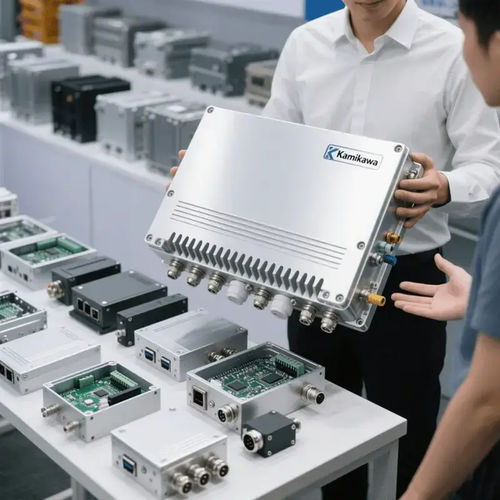

• IP68-rated aluminum enclosure engineered to protect electronic assemblies in outdoor and industrial environments.
• Constructed from high-strength all-aluminum alloy with sandblasted and anodized finishes for corrosion resistance and thermal management.
• Designed for flexible integration: standard profiles plus full customization for dimensions, mounting flanges and CNC cutouts for connectors and ventilation.

Key Features

• IP68 waterproof and dustproof sealing (documentation references IP67/IP68 performance)
• High thermal dissipation suitable for dense PCB assemblies
• All-aluminum construction offering impact resistance with low weight
• Surface treatments: sandblasting, anodizing; optional powder coating and conductive oxidation for EMI/RFI mitigation
• Custom mounting holes, logos and precision CNC cutouts supported
• No mold fees for orders over 100 sets; large selection of standard mold profiles available

Core Advantages

• Reliable environmental protection for outdoor, marine and industrial electronics
• Effective heat management to maintain component stability
• Scalable manufacturing: from single-piece prototypes to volume production
• Wide customization scope to meet project-specific mechanical and connector layouts

Applications & Use Cases

• Marine navigation instruments, outdoor solar controllers and monitoring stations
• Industrial sensors, PLC enclosures and automation control units
• EV charging controllers, renewable energy inverters and outdoor telecom cabinets
• Environmental monitoring, precision agriculture electronics and field-deployed IoT devices

Customization & Services

• Unlimited custom internal dimensions (L × W × H mm) and precision CNC cutouts for connectors, ports and ventilation
• Surface finishing options: sandblasting, anodizing, powder coating, conductive oxidation for EMI/RFI shielding
• Support for custom logos, laser engraving, mounting accessories and tailored packaging
• Design support with 2D/3D drawings and downloadable CAD/STEP files for standard profiles

Quality, Packaging & Production

• Individual inspection and protective packaging to prevent damage during transport
• Typical lead time: 7–14 business days (design approval + production); rush orders available
• Prototype production supported from 1 piece; many cases have no minimum for prototypes
• Mold fee policy: waived for orders over 100 sets

Frequently Asked Questions (selected)

• What customization options are available? Unlimited sizes, CNC cutouts, laser engraving and multiple surface treatments; prototype runs commonly possible without minimums.
• How long for a custom enclosure? Standard lead time is 7–14 business days including design approval; expedited options available.
• Are these suitable for outdoor use? Yes — IP-rated sealing plus anti-corrosion surface treatments protect against rain, dust and temperature variations.
• Is design support provided? Yes — engineering support for 2D/3D design and fit verification is available prior to production.

Technical Specifications

• Material: High-strength all-aluminum alloy
• Protection Rating: IP68-level sealing (references to IP67/IP68 in documentation)
• Operating Temperature: -40°C to +85°C
• Surface Treatments: Sandblasting, anodizing; optional powder coating, conductive oxidation
• Sealing: High-performance rubber gaskets / silicone seals for watertight integrity
• Customization: Standard sizes and unlimited custom inner dimensions (L × W × H mm), CNC cutouts, mounting holes, flanges, logos
• Profiles & Molds: 300+ mold profiles; CAD/STEP files available for many standard profiles
• Mold Fee Policy: No mold fees for orders over 100 sets
• Inspection & Packaging: Individual unit inspection and protective packing
• Lead Time: 7–14 business days (design approval + production); prototypes and rush options supported
• Services: CNC machining, 2D/3D drawing support, laser engraving, custom packaging and accessories
