Air heater

electriccompactcustom

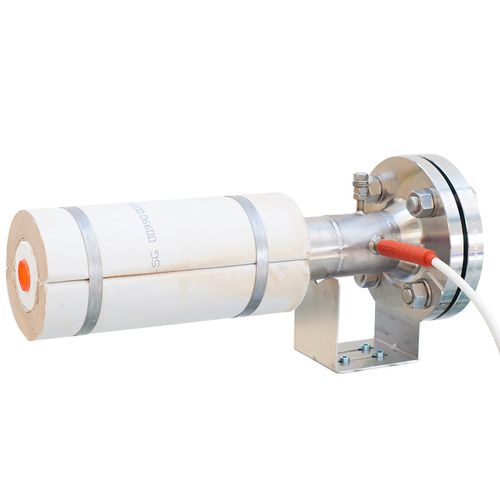

The Kanthal® Flow Heater is designed to heat air and process gases to temperatures up to 1,100°C (2,012°F) with unmatched precision and efficiency. Its robust design and superior performance make it ideal for integration into machines and installations. The Kanthal® Flow Heater is suitable for continuous and cycling operations. The Kanthal® Flow Heater is available in multiple power options, including 3.5 kW, 11 kW, 20 kW, 30 kW, 40 kW, and 60 kW, catering to different heating requirements. Industries Local heat treatment. Aluminum (primary and secondary processing). Glass manufacturing. Power-to-X applications. Packaging. Research and Development (R&D). Key Features Highest outlet temperatures [(1,100°C) (2,012°F due to unique patented design Power density comparable with gas burners Excellent outlet temperature accuracy (± 1 °C / F) Internal thermocouple for secure over temperature protection and controls Wide flow rate range: 20 – 200 % of nominal flow rate (or higher with custom Flow Heaters) With a unique design and robust internal temperature control, the Kanthal® Flow Heater can deliver gas outlet temperatures of up to 1,100°C (2,012°F), compared with 800°C (1,470°F) in conventional air heaters, as well as a temperature accuracy within ±1°C. When it comes to drying and preheating processes, flow heaters can deliver the same performance as gas burners but with increased heat efficiency. They can also reduce the CO2 footprint and eliminate combustion-related pollutants such as NOx and SOx from processes or facilities.
