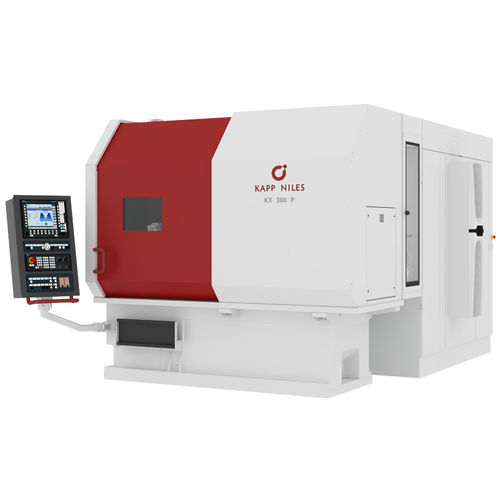

Gear grinding center KX 300 P

CNCdirect-drive

Based on different tool and process technologies, user-specific, optimal production solutions can be configured. The tool spindle with counterbearing can hold dressable and non-dressable grinding worms or profile grinding wheels. Due to the use of auxiliary spindles small grinding wheels up to a minimum diameter of 25 mm can be used. Machines can be loaded either manually or automatically. The use of an integrated ring loader allows short loading times for both bore and shaft parts. Key features of the KX 300 P Highest flexibility due to various machining processes Direct drive in tool spindle and workpiece spindle Manual loading, automation interface or integrated ring loader max. tip diameter - 350 mm max. workpiece length - 800 mm * module range generating / profile - 0.5 - 8 / 0.5 - 10 mm max. face width - 320 mm swivel range of grinding head - ±45 degrees
