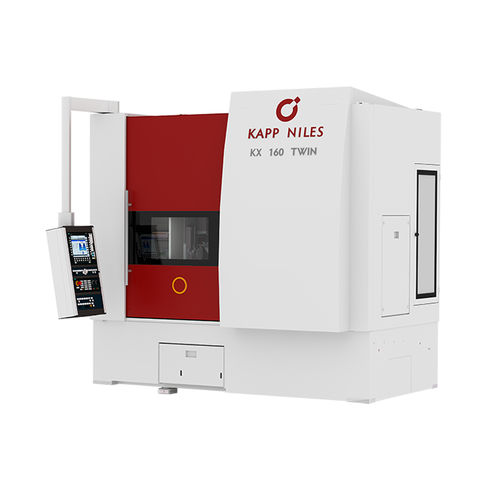

Gear grinding center KX TWIN series

with rotary tableCNChigh-speed

Machines of the KX TWIN series have been designed for continuous generating grinding with dressable and non-dressable tools. They are particularly suitable for the high production volumes in the medium and large batch production of gears and shafts. The concept includes two identical workpiece spindles arranged at opposing sides of an rotary indexing table. While machining one part, the second workpiece spindle simultaneously loads / unloads and aligns another part. The machines are optimised for automatic loading with a standardised, cost-effective combination of pallet conveyor and gantry loader. The profile grinding function is optionally available for the KX 260 TWIN. By using an optional high-speed grinding spindle (HS), it is even possible to grind gears with interfering edges which require a tool diameter of 55 mm (generating grinding) or 20 mm (profile grinding). Key features of the KX TWIN Baureihe Optimal machine concept for e-drive components Flexible connection to different concepts of automation Twin spindle concept with rotary indexing table max. tip diameter - 170 / 260 mm max. workpiece length - 770 mm module range - 0.5 - 4.5 / 0.5 - 6 mm max. face width - 320 (520) mm swivel range of grinding head - ±45 degrees
