Gear grinding center KX 500 FLEX

CNC

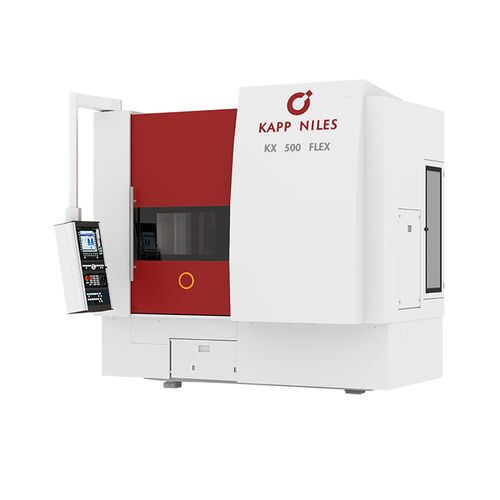

The patented KX 500 FLEX is designed for the flexible use of a wide range of tooling and machining technologies. Thus, application-specific production solutions can be configured to perform diverse processing jobs and a wide range of batch sizes efficiently and economically. Dressable tools for versatile machining processes and non-dressable CBN tools can be used for highly productive manufacturing as well as grinding of gear geometry with interfering edges. The machine concept is based on a rotary indexing table which incorporates the tailstock and dresser offset against the workpiece spindle. Due to the use of auxiliary spindles small grinding wheels can be applied. Both involute internal gears and special profiles can be machined with the internal grinding device. Key features of the KX 500 FLEX Machining of gears and special profiles Highest flexibility with the use and combination of different machining processes High level of quality from prototype to serial production max. tip diameter - 500 mm max. workpiece length - 1,000 mm module range generating / profile - 0.5 - 8 / 0.5 - 12 mm max. face width - 520 mm swivel range of grinding head - ±45 degrees
