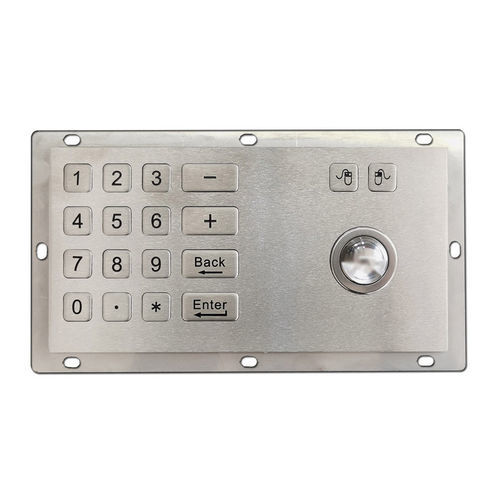

16-key keypad KH-KM195-A

panel-mountstainless steelUSB

Product Overview
The KH-KM195-A is a compact integrated input device combining a stainless steel keypad and a precision 25 mm IP65 waterproof laser trackball. Designed for industrial and public environments, it provides reliable data entry and pointing in control panels, kiosks, security equipment and other rugged applications.

Features

• Stainless steel front panel and keys
• 16+2 key layout (customizable)
• 25 mm IP65 waterproof laser trackball
• Carbon/Gold-plated (silicone) key switch technology
• Embedded fixed mount with rear panel mounting holes (alternative mounts available)
• High EMC resistance and environmental adaptability
• Custom layouts available on request

Specifications
Dimensions: 196 x 100 mm
Key Travel: 0.5 mm
Keys: 16+2 keys
Pointing Device: Trackball (25 mm)
Front Panel: Stainless Steel
Interface: USB, PS/2 or others
Power Supply: 5.0 V DC ±5%
OS Compatibility: All Windows versions, Vista / Linux / Unix / Mac OSX / iOS / Android
Temperature Range: Storage: -30°C to +80°C; Operating: -20°C to +70°C
Compliant Standard: RoHS, CE, FCC
Humidity: 20–95% RH
Atmospheric Pressure: 60–106 Kpa
MTBF: > 50000H
MTTR: < 30 min
Lifespan: Around > 5 years
Warranty: 1-year limited warranty

Model & Technical details

• Model: KH-KM195-A
• Dimensions: 196 x 100 mm
• Key Travel: 0.5 mm
• Keys: 16+2 (customizable)
• Trackball: 25 mm, IP65 waterproof laser trackball
• Front Panel Material: Stainless Steel
• Interface Options: USB, PS/2 or others
• Power Supply: 5.0 V DC ±5%
• OS Compatibility: Windows, Vista, Linux, Unix, Mac OSX, iOS, Android
• Storage Temperature: -30°C to +80°C
• Operating Temperature: -20°C to +70°C
• Humidity: 20–95% RH
• Atmospheric Pressure: 60–106 Kpa
• MTBF: > 50000 hours
• MTTR: < 30 minutes
• Lifespan: Around > 5 years
• Certifications: RoHS, CE, FCC
• Warranty: 1-year limited warranty
