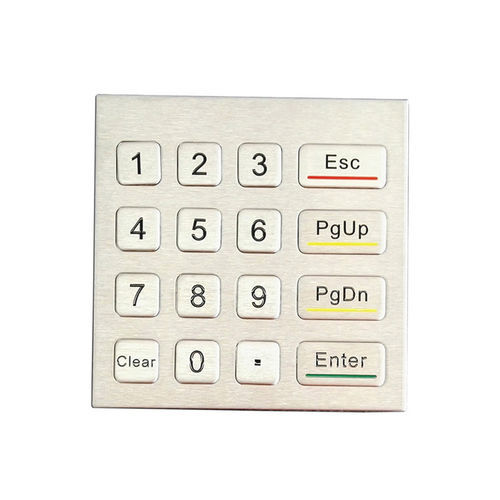

16-key keypad KH-E100-16

panel-mountstainless steelUSB

Product Overview
The KH-E100-16 is a compact, panel-mount 16-key stainless steel industrial keypad (4x4) designed for reliable numeric or function input in demanding industrial environments. It supports horizontal or vertical installation and multiple interface options. Certified RoHS, CE and FCC. Brand: CNKHTECH. Place of origin: China.

Features

• 16-key stainless steel keypad (4x4 layout)
• Panel-mountable horizontally or vertically
• Optional interfaces: USB, PS/2 or matrix pin output
• Dustproof and waterproof construction for harsh environments
• Customizable key layout available

Applications
Suitable for integration into industrial control panels, security and access systems, test and measurement equipment, kiosks and specialized machinery where a compact, durable numeric or function input is required.

Key Specifications

• Model: KH-E100-16
• Layout: 4x4, 16 keys
• Front panel material: Stainless steel
• Mounting: Panel-mount (horizontal or vertical)
• Interfaces: Matrix pin output, USB, PS/2 (optional)
• Power supply: 5.0V DC ±5%
• Dimensions: 100 x 100 mm
• Key travel: 0.5 mm
• Operating temperature: -20°C to +60°C
• Storage temperature: -25°C to +70°C
• Relative humidity: 20–95% RH
• Atmospheric pressure range: 60–106 Kpa
• OS compatibility: Windows, Linux/Unix, Mac OS X, iOS, Android
• MTBF: > 50,000 hours
• MTTR: < 30 minutes
• Lifespan: > 5 years (approx.)
• Warranty: 1-year limited warranty
• Certifications: RoHS, CE, FCC

Compliance and Reliability

• Designed and tested for industrial operating conditions
• Complies with RoHS, CE and FCC standards
• Maintenance-friendly design with documented MTTR and MTBF values
