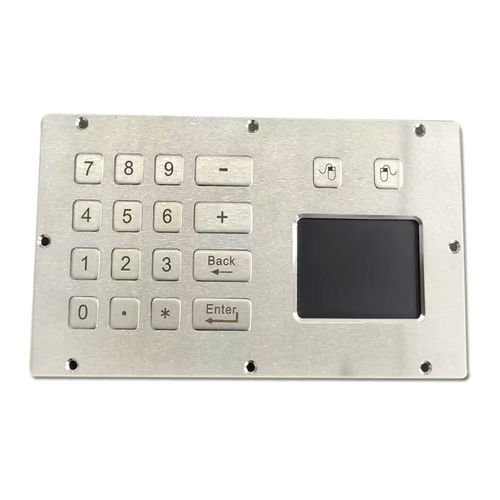

16-key keypad KH-KM206-TP

panel-mount304 stainless steelUSB

Product overview
The KH-KM206-TP is a compact integrated input device combining a SUS304 stainless steel keypad and a precision, IP65-rated touchpad. Its 16+2 key layout and sealed front panel deliver reliable data entry and cursor control in industrial, medical and public environments. The unit is designed for easy integration with multiple interfaces and long operational life.

Applications

• Industrial control panels
• Medical equipment
• Public kiosks and terminals
• Specialized machinery operating in harsh environments

Features

• SUS304 stainless steel front panel and keys for corrosion resistance
• 4x4 key layout (16 main keys) plus 2 function keys — customizable layouts available
• Integrated, responsive touchpad with IP65 protection
• Carbon / gold-plated silicone key switch technology for reliable actuation
• Multiple interface options (USB, PS/2 or others)
• Wide operating temperature and humidity range suitable for harsh conditions

Specifications
Dimensions: 206 x 115 mm
Key travel: 0.5 mm
Keys: 16+2 keys (16 main keys plus 2 function/command keys)
Pointing device: Touchpad (IP65)
Front panel: Stainless Steel (SUS304)
Interface: USB, PS/2 or others (optional)
Power supply: 5.0V DC ±5%
OS compatibility: Windows (all versions), Vista, Linux, Unix, Mac OS X, iOS, Android
Temperature range: Storage -30°C to +80°C; Operating -20°C to +70°C
Standards: RoHS, CE, FCC
Humidity: 20–95% RH
Atmospheric pressure: 60–106 KPa
MTBF: > 50,000 hours
MTTR: < 30 minutes
Lifespan: > 5 years (typ.)
Warranty: 1-year limited warranty

Technical specifications

• Model: KH-KM206-TP
• Material (front panel & keys): SUS304 stainless steel
• Layout: 4x4 (16 keys) + 2 function keys, customizable
• Touchpad: Integrated, IP65-rated
• Key switch: Carbon / gold-plated (silicone)
• Interfaces supported: USB, PS/2, others (optional)
• Power: 5.0V DC ±5%
• OS compatibility: Windows, Vista, Linux, Unix, Mac OS X, iOS, Android
• Operating temperature: -20°C to +70°C; Storage: -30°C to +80°C
• Relative humidity: 20–95% RH
• Atmospheric pressure: 60–106 KPa
• MTBF: > 50,000 hours
• Warranty: 1-year limited warranty
