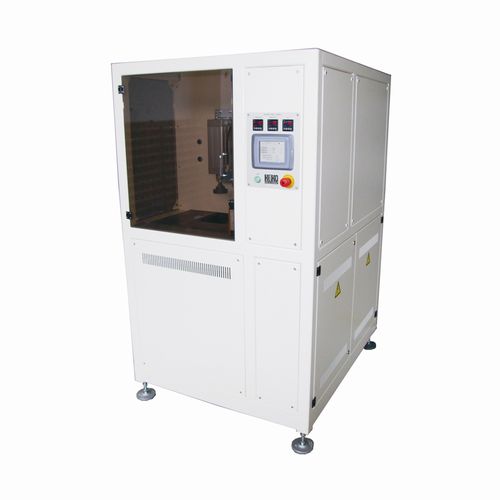

Electric press TPR serieslaminationprocessPLC-controlled
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Function
- lamination, process
- Control
- PLC-controlled
- Other characteristics
- vertical
- Force
400 kN, 700 kN
- Overall length
1,200 mm
(47 in)- Overall width
1,300 mm
(51 in)- Overall height
1,950 mm
(77 in)
Description
"Designed for thermal plate pressing of a large number of ceramic ML stacks..."
Machine lamination thermal plate press is designed for thermal pressing of a large number of ceramic ML stacks, or other similar ML based components stacked in a bar with a force of max. 400 kN or 700 kN
• Fully programmable up to 24 steps pressing profiles
• Fast and stable pressure rise capability
• Fully adjustable accurate temperature control system
Thermal press is designed for thermal pressing of multilayer ceramic stacks or other similar
multilayer bars with a force of max. 400kN or 700kN.
Fully adjustable and programable pressing regime with temperature control.
High precision pressing cavity is filled up manually. Tool automatically moves under hydraulic
press where pressing process takes place. After the cycle is finnished the tool moves out and
the block is lifted from the cavity
Pressing size up to 8" x 8"; by request
Pressing force up to 1000 kN / 100 tons
Temperature up to 150 °C
Dimensions L x W x H: 1200 mm (47 inch) x 1300 mm (51 inch) x 1950 mm (78 inch)
Compressed air 0.6 Mpa, 200 l/min
Electricity 3 x 360-415 VAC; 50/60 Hz; 7kW; 3x25A
OPTIONS - custom pressing size
- additional tooling
