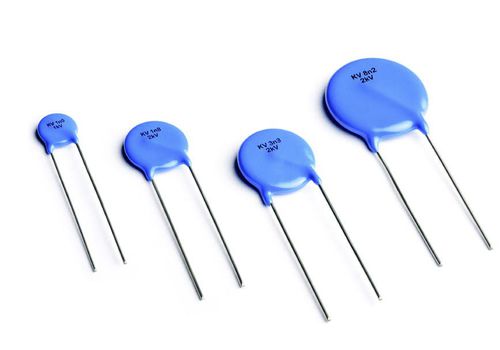

Ceramic capacitor KZ Series

radialcoupling

Safety ceramic disc KZ capacitors are intended for the galvanic separation of mains and conductive parts that might be touched, i.e. antenna inputs in radio and TV sets. They are ideal for line by-pass, antenna coupling and acrossthe- line applications, especially for circuits exposed to the danger of electric shock. These capacitors meet safety rules applicable to electronic apparatus and associated fittings for domestic or similar general use, connected to mains according to EN 132400. KZ capacitors offered by KEKO VARICON cover a capacitance range from 330 pF to 4700 pF, operating at AC rated voltages 300 V for Y2 Class and 500 V for Y1 and X1 Classes at frequency of 50 Hz. KEKO VARICON presently offers two groups of Type 2 KZ capacitors: group KZL Class Y2 and Class X1 which can withstand a test voltage of 2.5 kV AC and group KZH Class Y1 and Class X1 which can withstand a test voltage of 4 KV AC.
