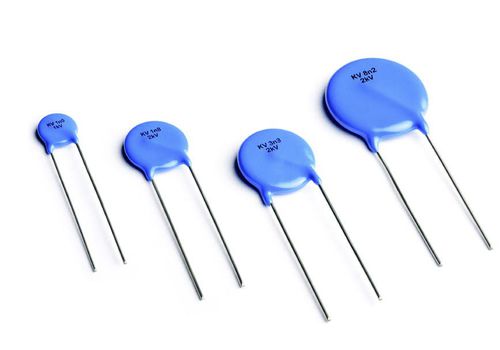

Ceramic capacitor KV Series

radialhigh-voltage

High voltage ceramic Type 2 disc capacitors cover a capacitance range from 330 pF to 10 nF operating at voltages from 1 to 6 kVDC. These capacitors utilize high dielectric constant (K>8000) ferroelectric formulations based on barium titanate. They exhibit markedly nonlinear temperature characteristics, significant dependence on voltage and frequency and a predictable decay of capacitance over time. Such capacitors are suited for by-pass, coupling and filtering applications, where Q, high insulation resistance and stability of capacitance characteristics are not of major importance.
