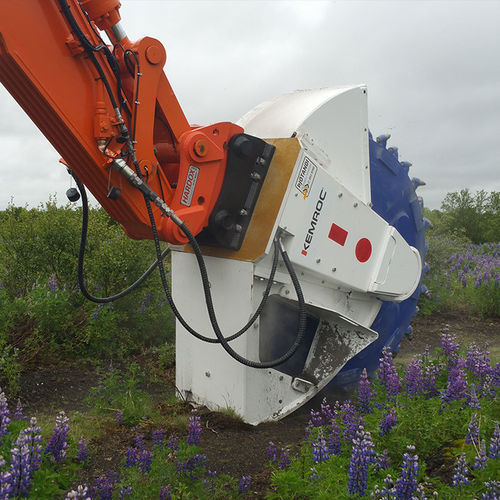

Stone and concrete cutting wheel DMW 220 Wheel 600
for stonefor concrete

Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 2
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 3
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 4
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 5
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 6
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 7
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 8
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 9
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 10
Stone and concrete cutting wheel - DMW 220 Wheel 600 - KEMROC Spezialmaschinen GmbH - for stone / for concrete - image - 11
Add to favorites
Compare this product

Characteristics

Treated material
for stone and concrete, for concrete, for stone

Description

Overview
  • Model: DMW 220 Wheel 600 — cutter wheel designed for excavator-mounted cutter attachments.
  • Intended for heavy excavators (recommended weight 40–60 t); drive unit rated at 220 kW.
  • KEMROC supplies wheels to order for various cutting widths and depths; custom manufacturing possible within specified technical limits.
  • * To maintain warranty, consult the manufacturer before using the wheel in reinforced concrete with large-diameter rebar.
  • ** Cutter wheel weight varies depending on diameter and width.


Technical data (detailed)
  • Recommended excavator weight: 40–60 t (90,000–130,000 lb)
  • Rated power: 220 kW (295 hp)
  • Cutter depth (A): 550 mm (22 in)
  • Cutting width (B): 130 | 200 | 400 mm (5 | 8 | 16 in)
  • Cutting wheel diameter (C): 1610 mm (63 in)
  • Recommended rpm: 55 rpm
  • Recommended oil flow: 550 l/min (145 gal/min)
  • Max. oil flow: 650 l/min (172 gal/min)
  • Max. operating pressure: 400 bar (5800 psi; 380 bar noted in US field)
  • Torque at 380 bar: 59,500 Nm (43,900 lbf·ft)
  • Cutting force at 380 bar: 74 kN (16,600 lbf)
  • Max. rock compressive strength: 120 MPa (17,405 psi)
  • Weight of drive unit, approx.: 2,750 kg (6,063 lb)
  • Weight of cutter wheel, approx.: 920 kg (2,028 lb) — depends on diameter and width
  • Alternate cutter wheel weight (approx.): 800 kg (1,764 lb)
  • Weight of dipping device, approx.: 180 kg (397 lb)
  • Weight per cutting width: 4,650 kg (10,251 lb)
  • Pick box: PH 32 HD Type
  • Number of picks: 40 pcs (standard)
  • Standard pick: 22/75/70/30 Q
  • Standard hole pattern: LB40
  • Compatible rotation unit (KRM): KRM80


Features / Technical specifications
  • Model name: DMW 220 Wheel 600
  • Recommended excavator weight: 40–60 t
  • Rated power: 220 kW
  • Cutter depth: 550 mm
  • Available cutting widths: 130 mm, 200 mm, 400 mm
  • Cutting wheel diameter: 1610 mm
  • Recommended rotational speed: 55 rpm
  • Hydraulics: recommended oil flow 550 l/min; max oil flow 650 l/min; max operating pressure 400 bar
  • Torque (at 380 bar): 59,500 Nm
  • Cutting force (at 380 bar): 74 kN
  • Max. rock compressive strength: 120 MPa
  • Drive unit weight (approx.): 2,750 kg
  • Cutter wheel weight (approx.): 920 kg (varies by diameter/width)
  • Number of picks: 40 (standard)
  • Pick box / type: PH 32 HD; standard pick 22/75/70/30 Q
  • Standard hole pattern: LB40
  • Compatible rotation unit: KRM80
