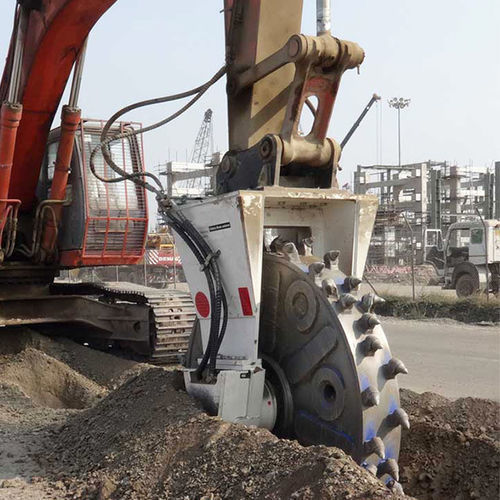

Stone and concrete cutting wheel DMW 220 Wheel 800

for stonefor concrete

Product overview
KEMROC DMW 220 Wheel 800 cutter wheel for excavators. Supplied to order for different cutting widths and depths within technical limits. Designed for heavy rock and concrete cutting; compatible with rotation unit KRM80. To maintain warranty, consult the manufacturer before use in reinforced concrete with larger diameter rebar. Cutter wheel and drive-unit weights depend on selected diameter and cutting width.

Notes

• Wheels can be made to order for different cutting widths and depths within technical boundaries.
• Warranty: consult manufacturer before use in reinforced concrete with larger diameter rebar.
• Cutter wheel weight depends on diameter and width.

Technical specifications

• Recommended excavator weight: 40 – 60 t (90,000 – 130,000 lb)
• Rated power: 220 kW (295 hp)
• Cutter depth (A): 750 mm (30 in)
• Cutting width (B): 130 | 200 | 400 mm (5 | 8 | 16 in)
• Cutting wheel diameter (C): 2010 mm (79 in)
• Recommended rpm: 55 rpm
• Recommended oil flow: 550 l/min (145 gal/min)
• Max. oil flow: 650 l/min (172 gal/min)
• Max. operating pressure: 400 bar
• Torque at 380 bar: 59,500 Nm (≈ 43,900 lbf·ft)
• Cutting force at 380 bar: 59 kN (≈ 13,300 lbf)
• Max. rock compressive strength: 120 MPa (≈ 17,405 psi)
• Weight of drive unit, approx.: 2,750 kg (≈ 6,063 lb)
• Weight of cutter wheel, approx.: 920 kg (≈ 2,028 lb)
• Weight of dipping device, approx.: 180 kg (≈ 397 lb)
• Weight of cutting wheel: 1,250 kg (≈ 2,756 lb)
• Weight per cutting width: 5,100 kg (≈ 11,244 lbs)
• Pick box: PH 32 HD Type
• Number of picks: 42 pcs
• Standard pick: 22/75/70/30 Q
• Standard hole pattern: LB40
• Compatible rotation unit (KRM): KRM80
