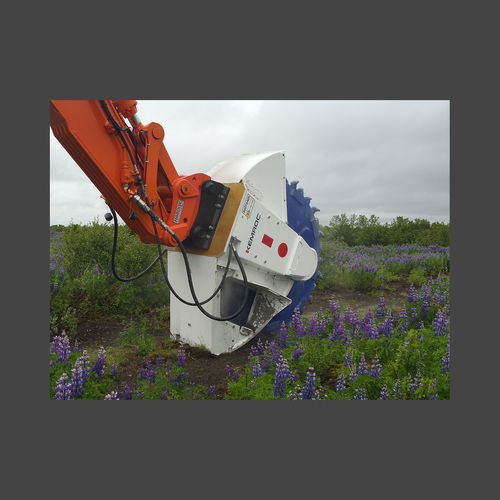

Stone and concrete cutting wheel DMW 240 Wheel 1000for stonefor concrete
Add to favorites
Compare this product
Characteristics
- Treated material
- for stone and concrete, for concrete, for stone
Description
Overview
Technical data
Weights & components
Picks & compatibility
- KEMROC can supply wheels to order for various cutting widths and depths. Within technical boundaries, cutter wheels can be made to order.
- Cutter wheel weight depends on diameter and width.
Technical data
- Recommended excavator weight: 45 – 60 t (100000 – 130000 lb)
- Rated power: 220 kW (295 hp)
- Cutter depth (A): 1000 mm (39 inch)
- Cutting width (B): 130 | 200 | 400 mm (5 | 8 | 16 in)
- Cutting wheel diameter (C): 2570 mm (101 in)
- Recommended rpm: 45 rpm
- Recommended oil flow: 500 l/min (132 gal/min)
- Max. oil flow: 650 l/min (172 gal/min)
- Max. operating pressure: 400 bar (5800 psi)
- Torque at 380 bar: 65300 Nm (48200 lbf·ft)
- Cutting force at 380 bar: 51 kN (11400 lbf)
- Max. rock compressive strength: 100 MPa (14504 psi)
Weights & components
- Weight of drive unit, approx.: 2750 kg (6063 lb)
- Weight of cutter wheel, approx.: 920 kg (2028 lb)
- Weight of dipping device, approx.: 180 kg (397 lb)
- Weight of cutting wheel: 2250 kg (4960 lb)
- Weight per cutting width: 6100 kg (13448 lbs)
Picks & compatibility
- Pick box: PH 32 HD Type
- Number of picks: 50 Pcs
- Standard pick: 22/75/70/30 Q
- Standard hole pattern: LB40
- Compatible rotation unit (KRM): KRM80
