Overview

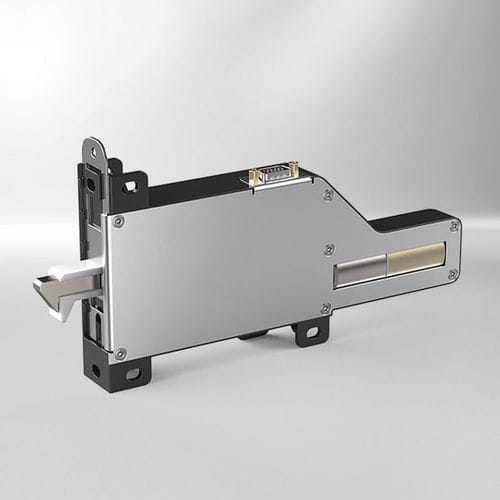

The HS7722 24V DC motor lock is a motor-driven locking unit for machine doors. It combines mechanical locking, motorized actuation, sensors, and electronics to securely lock doors and pull them into the door seal in a controlled way.

Advantages

• Motorized push/pull locking
• Force-monitored door closing
• Integrated end-position sensors
• Automatic readjustment for worn door seals
• Pre-latching function available
• Integrated emergency opener
• Suitable for demanding door locking applications

Application Areas

• Machine doors
• Industrial systems
• Safety and access doors
• Devices with automatic door locking
• Applications with tightly sealed doors

Key Technical Data

• Model: HS7722 24V DC
• Product type: motor lock / motorized locking unit
• Locking function: automatic push/pull locking
• Nominal voltage: 24 V
• Duty cycle: 10%
• Power consumption: 19 W
• Max. locking force: 400 N
• Connection: 15-pin D-sub connector
• Operating temperature: 0°C to 80°C
• Dimensions: 117 × 227 × 30 mm
