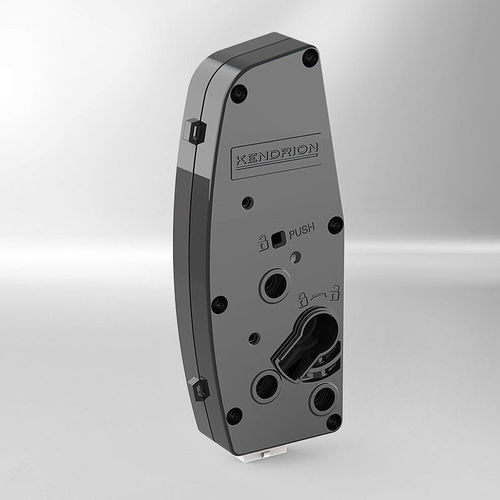

Electromechanical lock Rotary Door Lock

mechanicalfor doorfor industrial applications

Overview
The Rotary Door Lock is a compact electromechanical locking system for swing doors in machines, plants, and equipment. It is designed for high mechanical loads and demanding environments where doors must be securely closed, sealed, and locked.

Advantages

• Flat and robust design
• Ready-to-install locking unit
• Suitable for high ambient temperatures
• Emergency opening mechanism included
• Sensors for detecting door-closed and door-locked positions
• Strong sealing force for compression locking

Application Areas

• Professional washing machines
• Industrial ovens and combi steamers
• Climatic chambers and environmental simulation systems
• Process and laboratory sterilizers
• Incubators

Key Technical Data

• Model: Rotary Door Lock RL
• Product type: electromechanical rotary door lock
• Operating voltage: 24 V DC / 12 V DC
• Nominal power: 24 W
• Duty cycle: 15%
• Dimensions: 70 × 174 × 30 mm
• Rotation angle: 60°
• Seal compression: up to 400 N
• Ambient temperature: 5°C to 80°C
• Lifetime: 30,000 cycles
• Certificate: RoHS and UL-listed materials
